Shoei's Unitized Folding Systems Offer Most Efficient Capabilities for All Kinds of Folds Disired.

SPT series

47 / 56 / 66 / 74 / 82 / 97 / 112cm / width

Parallel unit. Basic folder are available with 4 buckles as standerd type, and with 6 or 8 buckles as optional. They are used for parallel catalogue folds and multi-up folds with slitting.They can be converted to a cross folding machine when combined with additional cross fold units.

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
Zigzag 5
※6buckle・8buckle model only

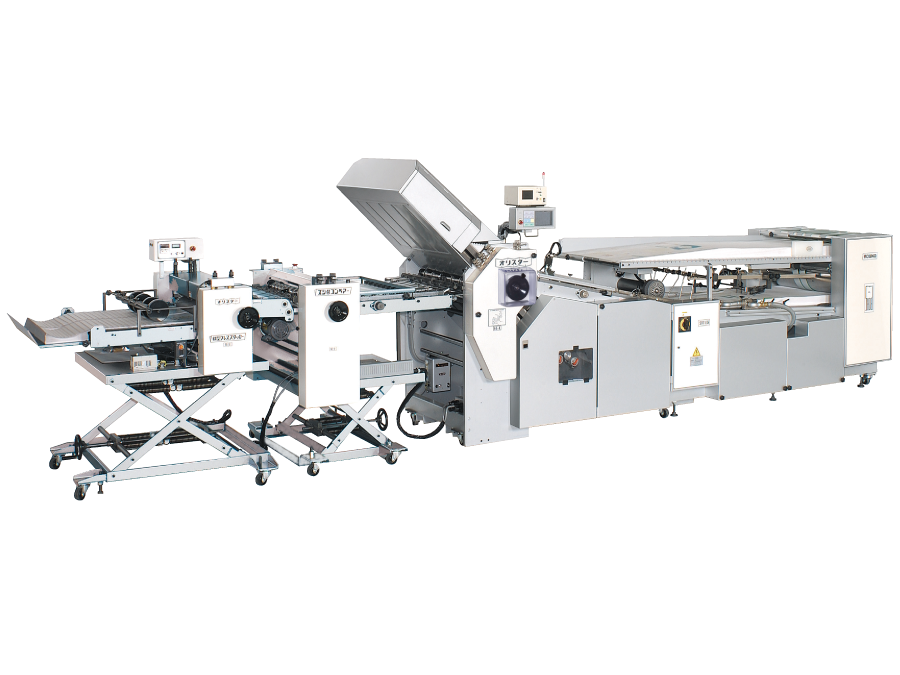

SRT with slitter unit(2,3,4,5up)+FPSA2

※option:Sheet checker with CCD camera

Multifaceted slitter conveyer unit + Flat press stacker

SRT with slitter unit(2,3,4,5up)+FPSA2

Recommendable for re-fold of the stuff done on web press.

Web press, glued triplicate or quadruplicate documento, stock with window, curly sheets with full ink coverage and porous stock. Sheet advance and suction timing are accurately controlled by photocell and rear sheet separator is a "must" item for big format.

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4

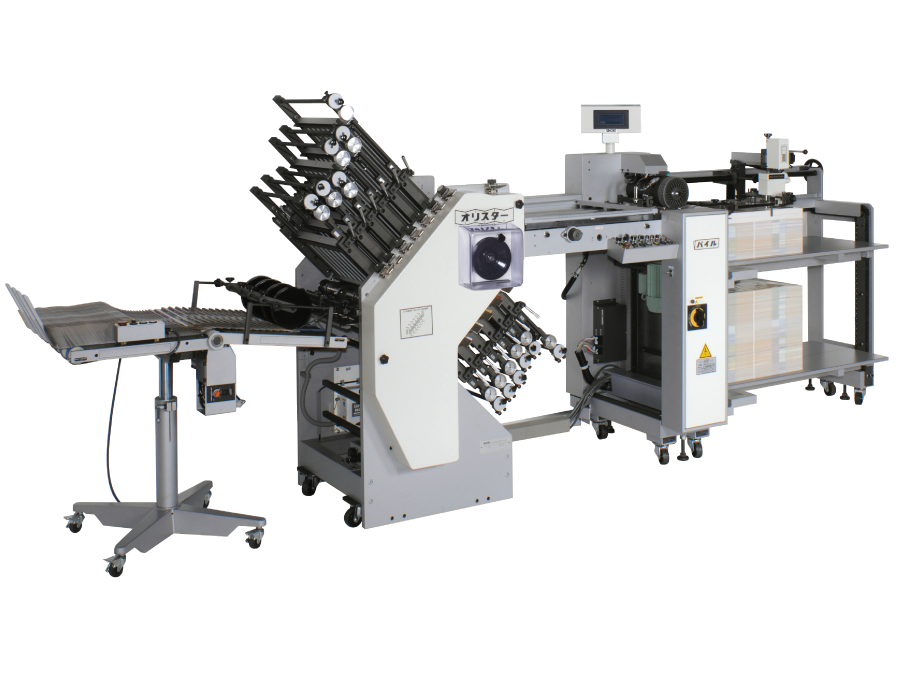

Zigzag folder

Buckle6 / 8 / 10 / 12 / 16

47 / 56 / 66 / 74 / 82 cm / width

Recent years have seen zigzag accordion-folded catalogues increasing. Shoei was quick to start this type of folding conventionally considered to be difficult, and succeeded in perfection of zigzag accordion folding technology and facilitation of machine setup and adjustment. What is more, the buckles of zigzag folder are all with swing deflectors to ensure labor savings and quick setup. In addition, the use of the reversing fold plate (see the photo on inside leaf) allows final folding of accordion folded material or map to a minimum width of 20mm at the pasted edge.

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
Zigzag 5
Zigzag 7

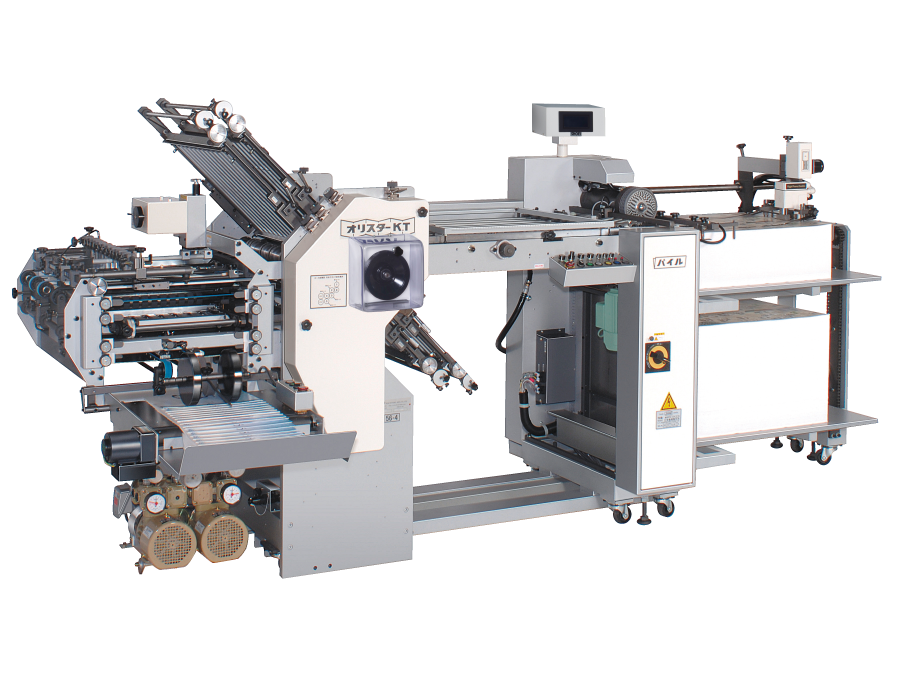

SPK56-4KTT

Buckle4(standard) 6 / 8 / 10(option)

56 cm / width

●Two opposing side pockets under the knife for cross parallel fold.
●Gate fold plate, pre-slitter shaft as option.
●Optional gluer and right angle edge trimmer are available for simultaneous finish of glue binding.
●Sturdy cast iron side frame.
●Pre-loading dual feed board.

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
8 page
Cross folded letter fold
Cross letter folded folio
Double parallel+double parallel

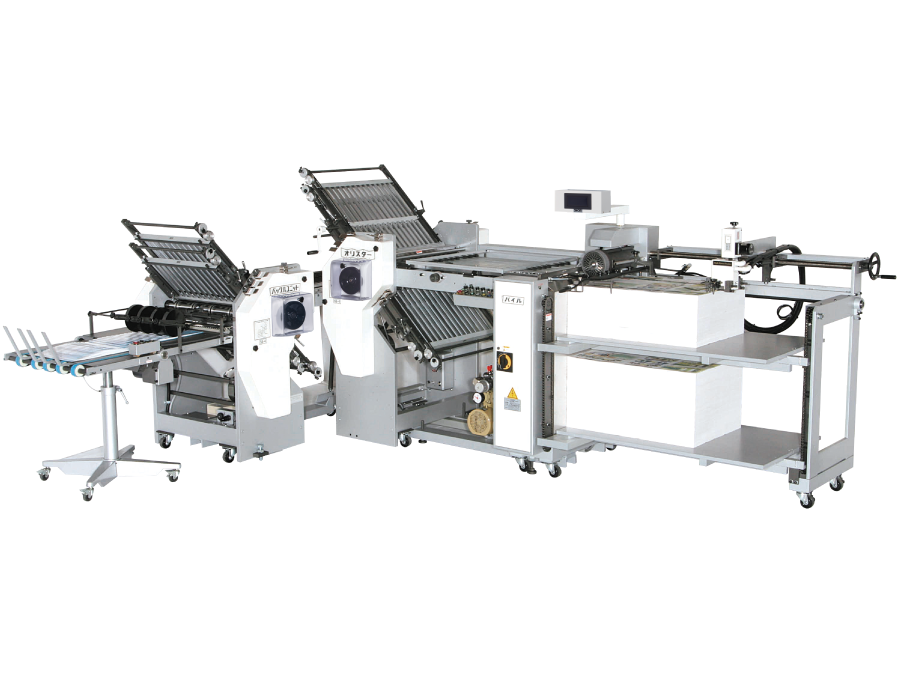

SPT66-4/4

SPT66-4/4

47 / 56 / 66 / 74 / 82 / 97 / 112

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
8 page
Cross folded letter fold
Cross letter folded folio
Double parallel+double parallel

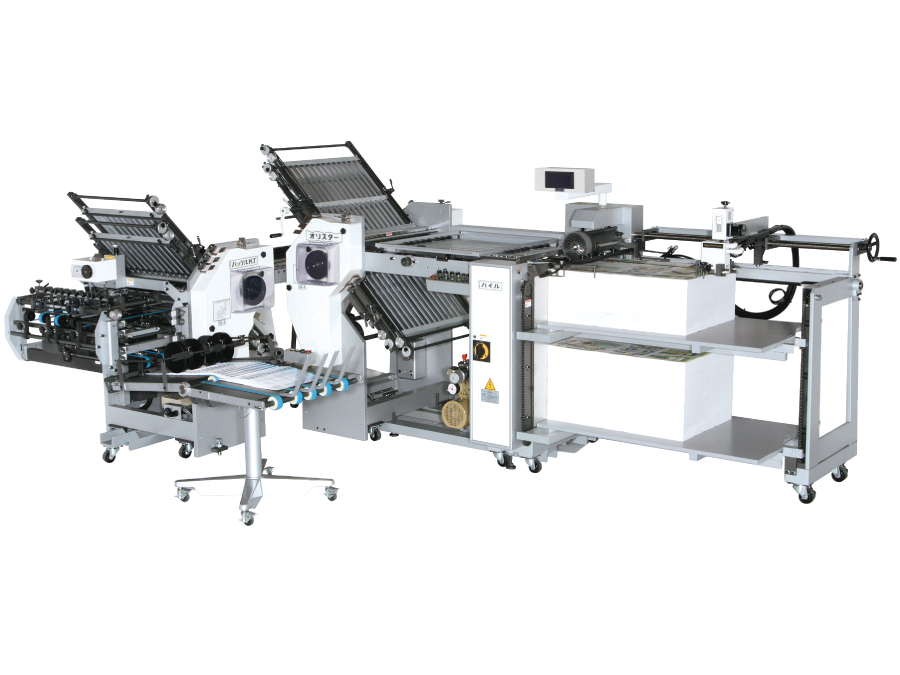

SPT74-4/4K

SPT74-4/4K

56 / 66 / 74 / 82 / 97 / 112 cm / width

Re-folding of web-fold.Three knife trimming is possible by slitter blades fitted on pre-slitter shafts on main unit & cross carrier unit. then, letter fold is done on 2nd unit. 16 page signature fold also possible.

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
8 page
Cross folded letter fold
Cross letter folded folio
Double parallel+double parallel
16 page

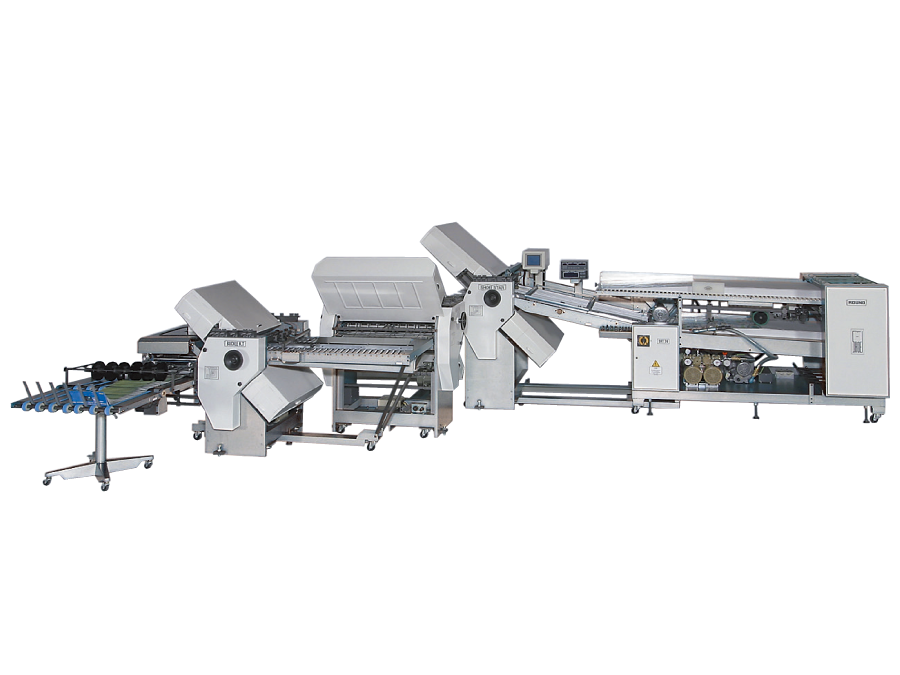

SRT97-6/4/4KTT

SRT97-6/4/4KTT

56 / 66 / 74 / 82 / 97 / 112 cm / width

Catalogue, direct mail insert, parallel or right angle closed gate and zigzag.
Wide coverage of folding variety.

●To avoid spacious 3 directionalbuckle units, Shoei introduced buckle unit followed by its right angle knife with opposing side pockets underneath. Installation of reversing fold plate prior to this knife gices wide range of folding possivilities regardless of "cover" leaf position.
●4K model with no pocket under the knife is also available.
●Gate fold plate is optional for parallel or right angle closed gate fold.
●32 page signature fold also possible.

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
8 page
Cross folded letter fold
Cross letter folded folio
Double parallel+double parallel
16 page
