MINI VARIABLE SERIES

Mini Folder for ordinary folding of B3 size stock, extra small fold, pharmaceutical, cosmetic package inserts.

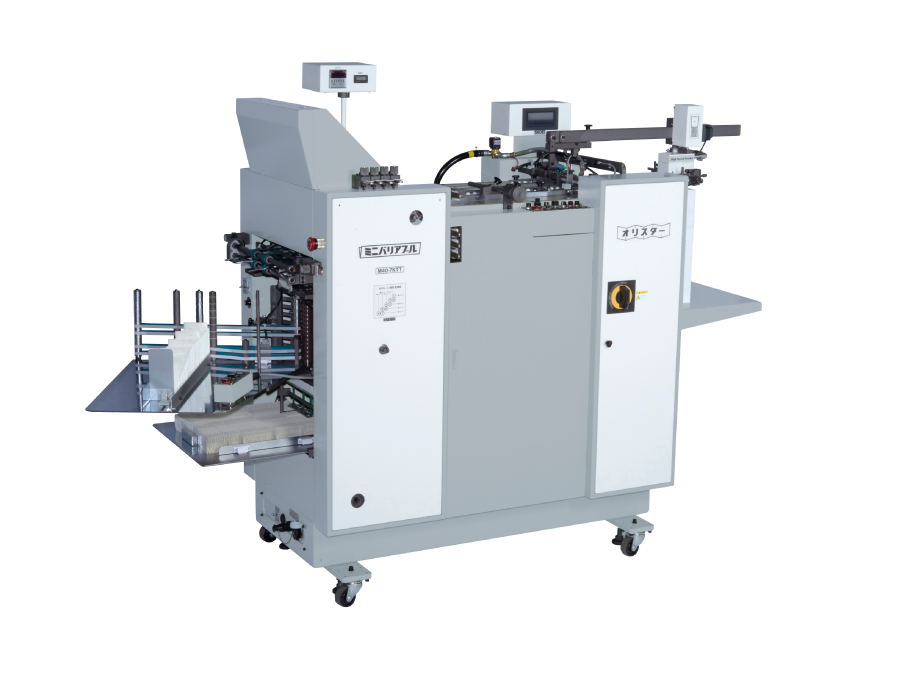

SM40-7KTT

Right angle multiple fold with KTT fold section.

SM40-7KTT

44KTT・A2 / 40KTT・B3
(5 pocket or 7 pocket)
26KTT・B4
(5 pocket or 7 pocket)

KT mechanism on main unit with vertical knife followed by two side-pockets for right angle letter fold or double parallel, regardless of cover-leaf position.
Wide folding variation like cross letter fold, z fold or double parallel fold is possible by 5 or 7 parallel pockets plus cross fold knife followed by 2 opposing buckles.
Front or rear sheet separator can be used for normal stock and small size stock down to 90mmL×50mmW.
3 stacking methods are selective depending upon folding schemes.

Principal Folding Capabilities

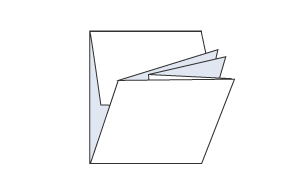

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold

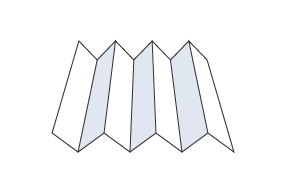

Zigzag 5
Zigzag 7
※7-buckle only
Double letter fold
Letter folded folio
※7-buckle only
8 page
Cross folded letter fold
Cross letter folded folio
Cross double paralleled folio
Double parallel+letter fold
Double parallel+double parallel
Zigzag+folio

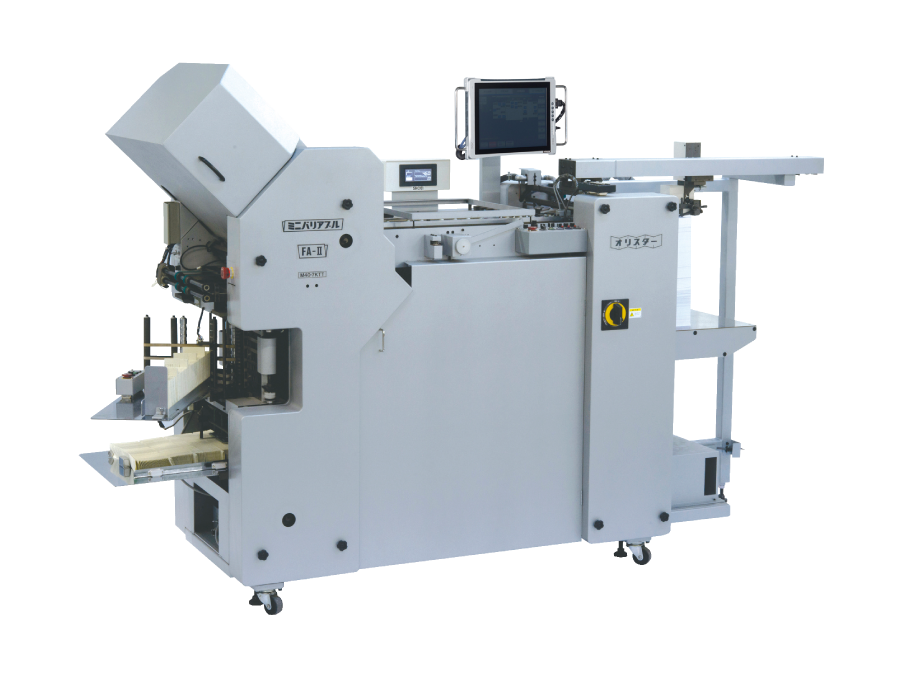

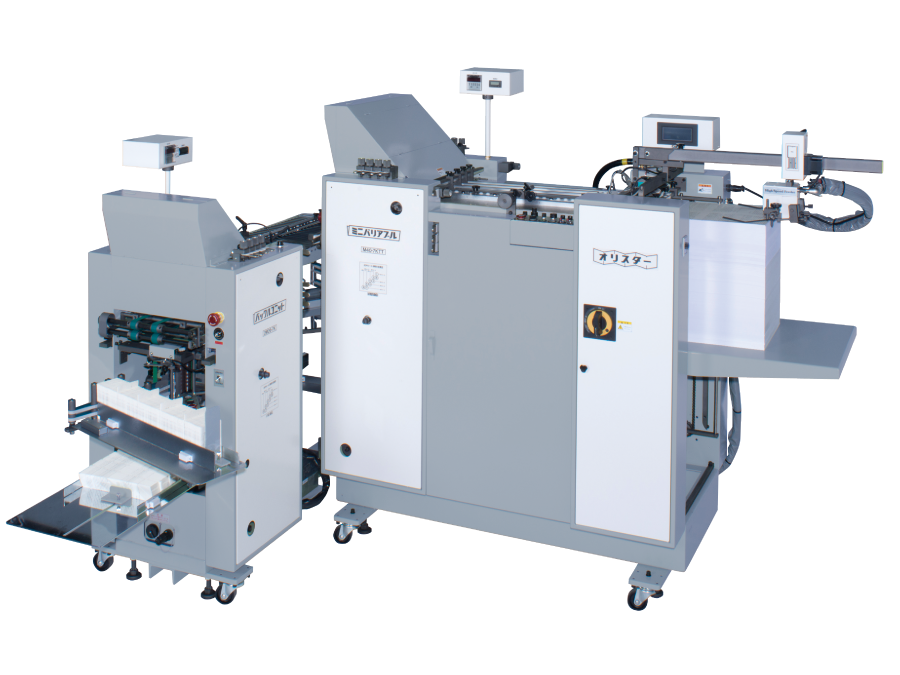

Mini variable with 2nd station
SM40-(5or7pocket)KTT/26K

※Opiton Batch counters (Main&2nd)

Mini variable with 2nd station
SM40-(5or7pocket)KTT/26K

B3 type 40KTT/26K(5 pocket or 7 pocket version)
B3 type 36KTT/26K(7 pocket)
※Main unit 44KT (A2 type) and 2nd unit 36KTT (B3) are also available

Shoei Mini Variable 40KTT·26KTT consists of 1st unit with vertical cross fold knife followed by KTT section, 2nd station with vertical knife for either normal right angle imposition or tandem use. Both units have a choice of 5 or 7 pockets and are accommodated with electronic cross fold knife. Above all, main unit is supplied with Shoei original KTT section (Knife+2 side pockets) for more versatility, fold accuracy and easier operation.

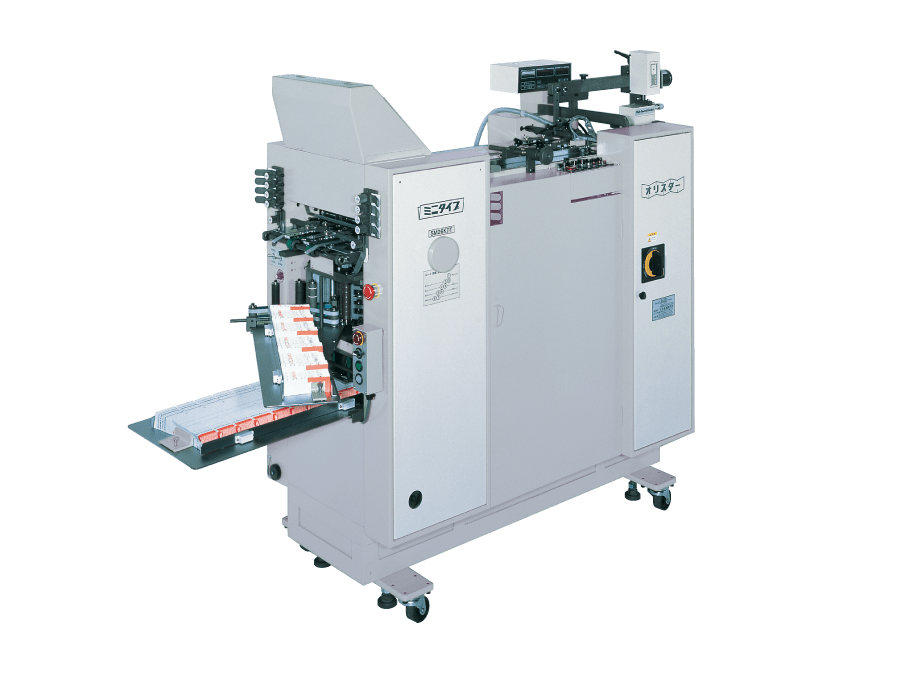

Mini type
SM26-7(5)KTT or 7(5)K

Mini type
SM26-7(5)KTT or 7(5)K

26・B4 type(5 & 7 pockets)

Multi roller fold or zigzag folding with min. 20mm Its KTT section provides the possibility of right angle letter fold, double parallel and z fold.

SM40-(5or7)KTT
FA-Ⅱ

SM40-(5or7)KTT
FA-Ⅱ

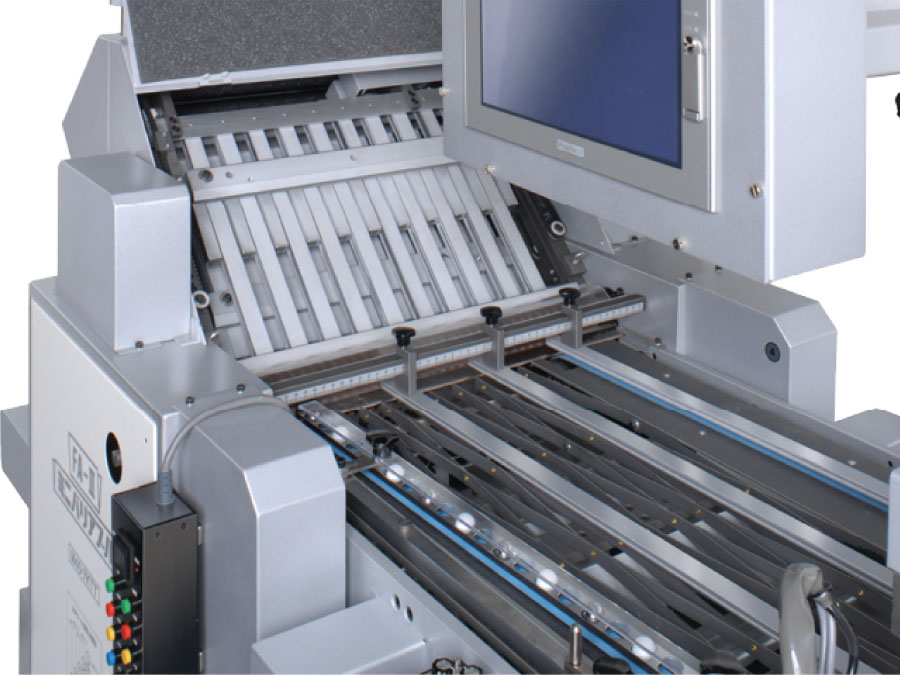

Speedy paper measurement and roller pressure configurations with the Mini Variable 40 KT computer-automated loader

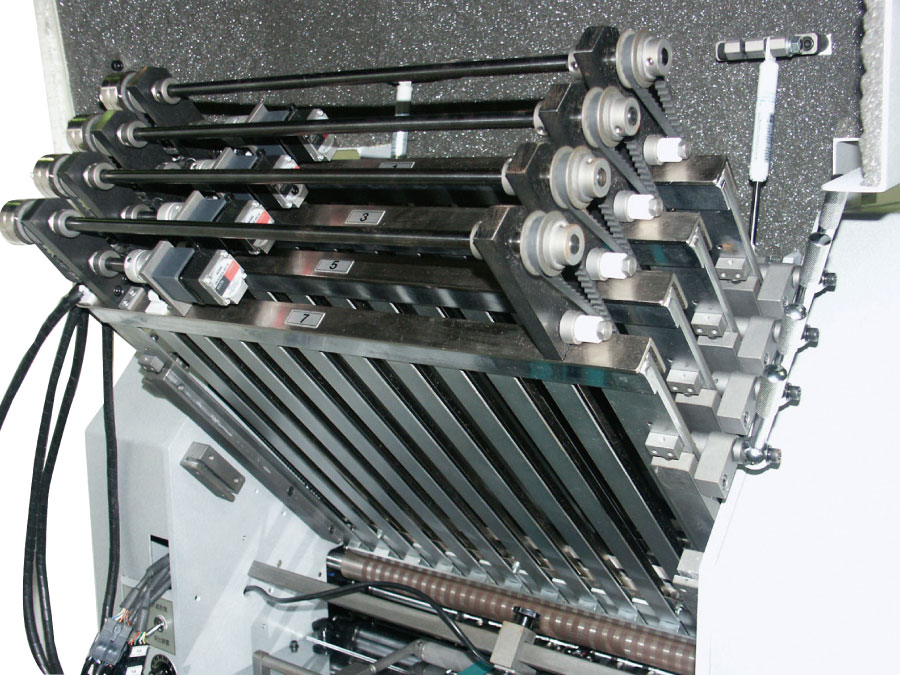

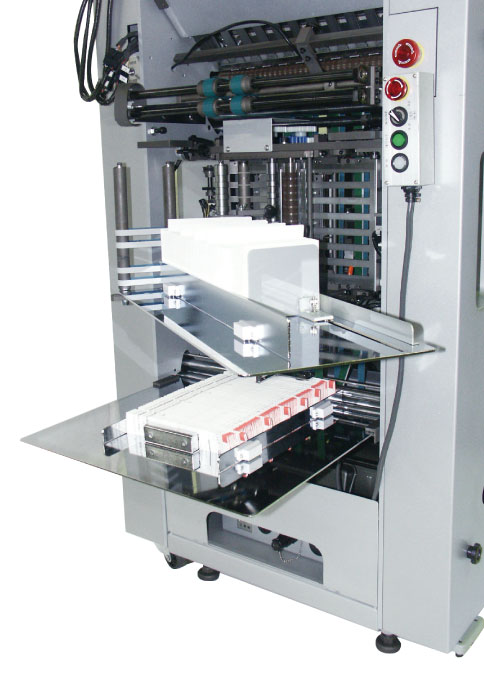

Main unit buckle

Side guide and roller pressure adjustment unit

Delivery unit

Cross fold knife unit
with KTT unit

Cross fold knife unit
with KTT unit

Folded into min. 30mm~max.B5
*KTT unit, cross fold knife with opposing pockets is also available

Parallel fold knife unit

Parallel fold knife unit

Folded into min. 45mm~max.110mm. Gate folding also possible.

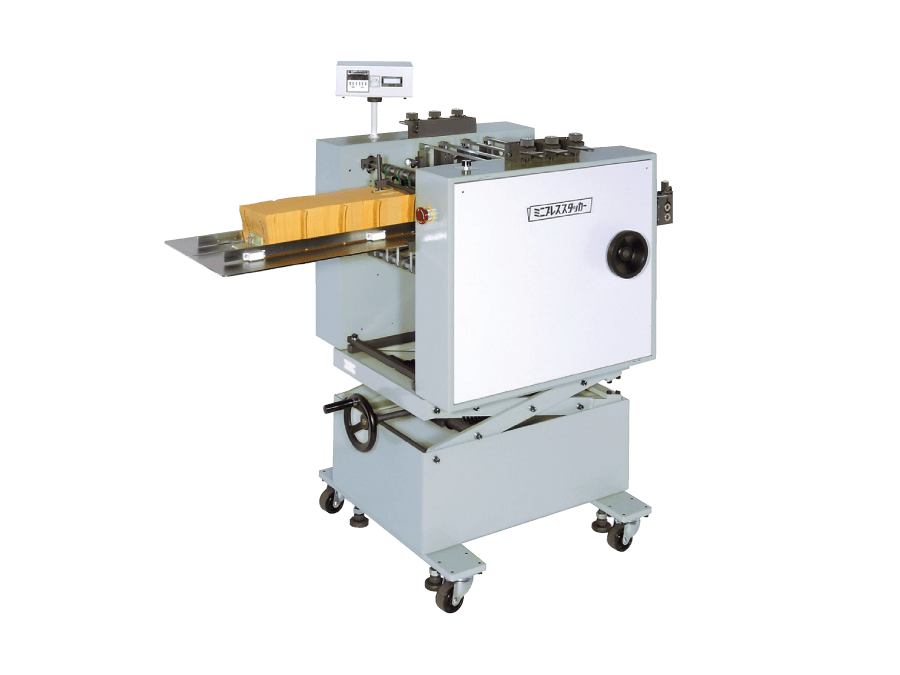

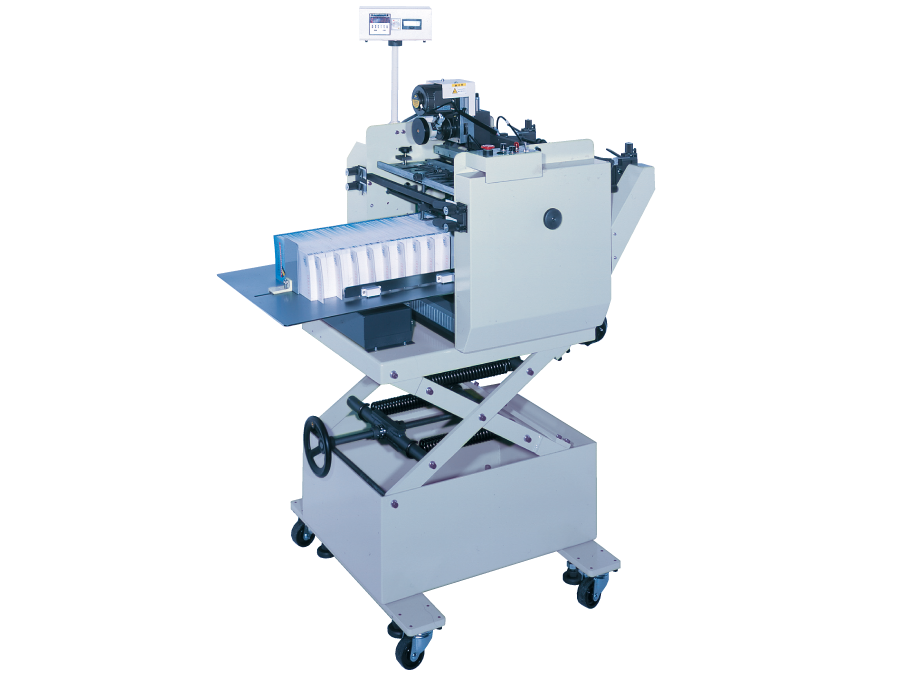

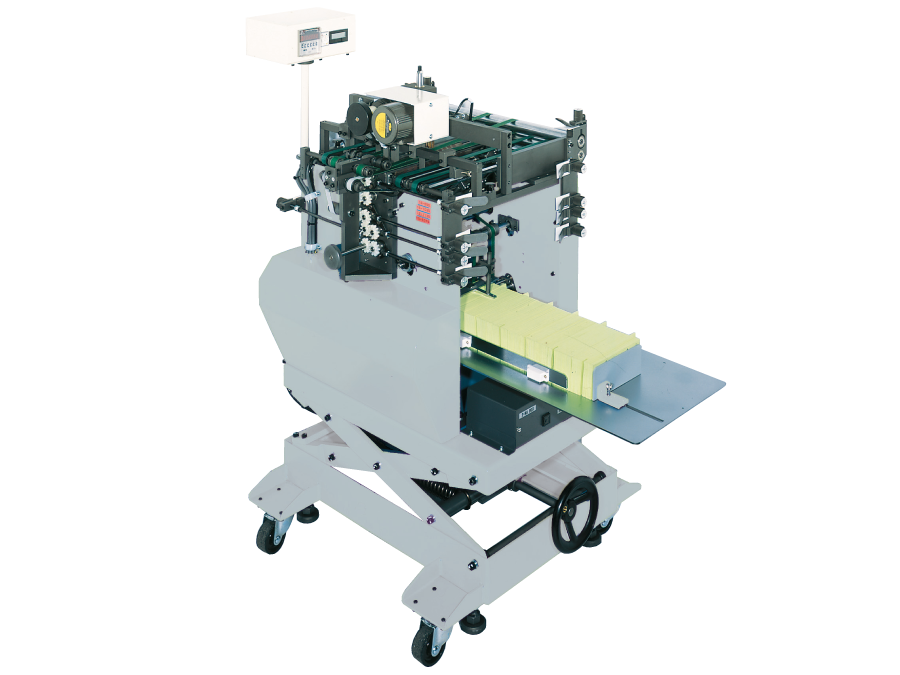

Miniature press stacker

Miniature press stacker

Min.height 45mm is pressed, stacked and counted by kicker. Infeed conveyor and press roller sections use dual tape method which positively transport folds with no jam or stop.To be rolled-up to any SHOEI SM (mini/phamaceutical) series.
