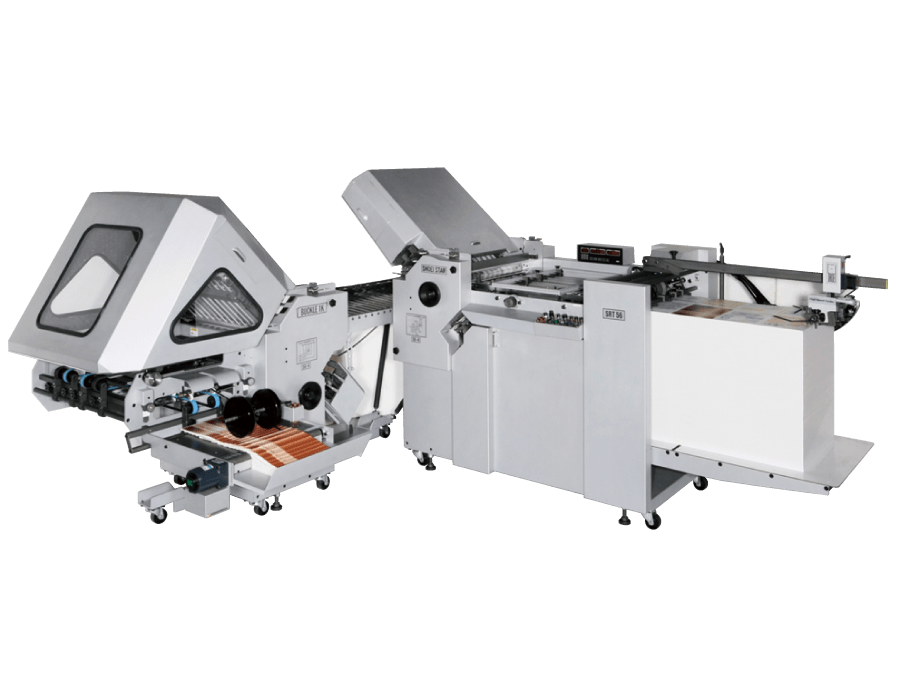

SPACE SAVING SHOEI

Our Compact Series features high performance at a low cost. These long-awaited mid-sized folders are perfect for small spaces.

Space saving, wide folding variation and easy oparation

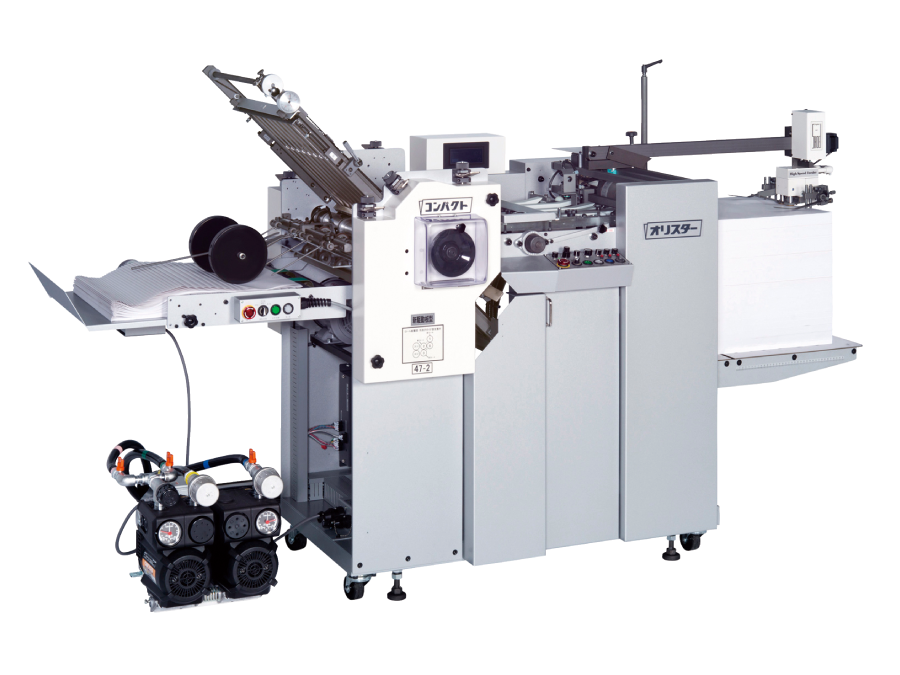

SPT47s-2(4)

Parallel small folder

Ultra high speed parallel folder. Min. space required and reasonably priced. Smooth feed by high speed rear sheet Separator.

Max. sheet size(W×L)470×650mm
Min. sheet size(W×L)120×135mm…parallel
Min. parallel fold length65mm

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
※Compact 47s-4 model only
W fold
※Compact 47s-4 model only
Zigzag 4
※Compact 47s-4 model only

SPT47s-2(4)K

Cross small folder

Ultra high Speed cross folder. Min. power consumption for easy operation. High speed cross fold by well-proven electric knife.

Max. sheet size(W×L)470×650mm
Min. sheet size(W×L)120×135mm…parallel
150mm…knife
Min. parallel fold length65mm

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
8 page
Cross folded letter fold
Double parallel+folio
Cross folded Z fold
Roll fold
※SPT47s-4model only
W fold
※SPT47s-4model only
Zigzag 4
※SPT47s-4model only
Folded letter
※SPT47s-4model only

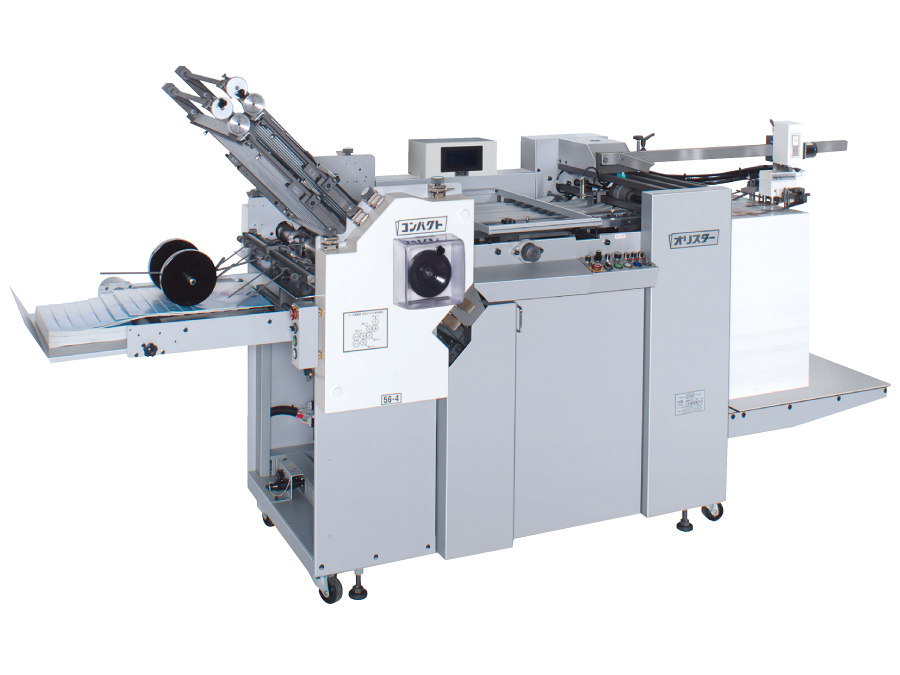

SPT56s-4(6)

SPT56s-4(6)

Parallel folder

Compact as, can handle final A4 sized closed gate fold

Max. sheet size(W×L)560×850mm
Min. sheet size(W×L)120×135mm…parallel
Min. parallel fold length65mm

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4

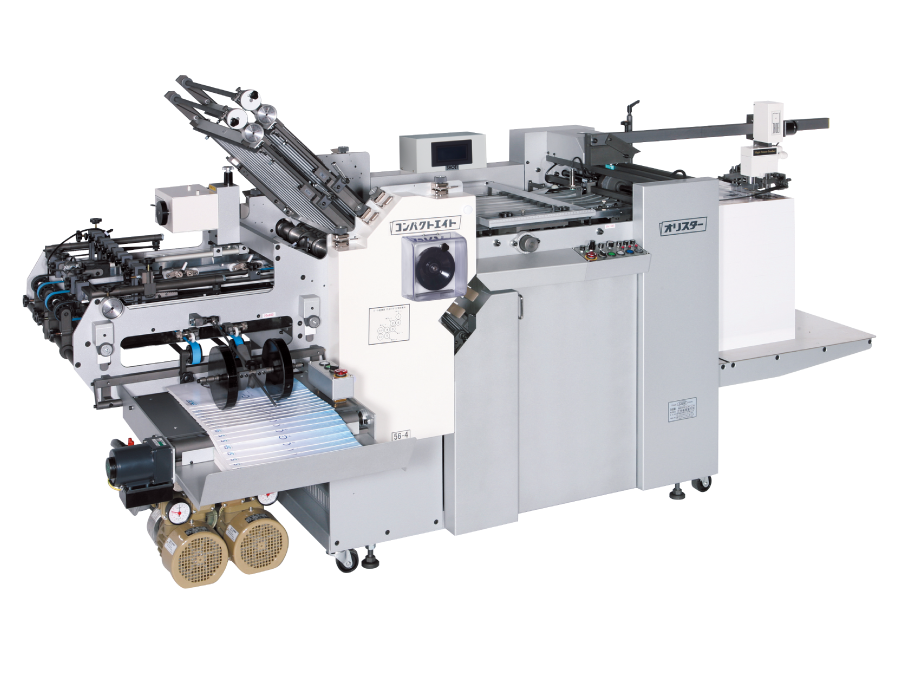

SPT56s-4(6)K

Cross folder

Parallel & 8 page folding.
Low profile 8 page folder for easy operation.
High speed parallel & cross folding by well-proven sheet separator & high speed knife.
B2 trimmed format loaded, A4 closed gate fold possible by optional gate fold plate.

Max. sheet size(W×L)560×850mm
Min. sheet size(W×L)120×135mm…parallel
150mm…knife
Min. parallel fold length65mm

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
8 page
Cross folded letter fold
Double parallel+folio

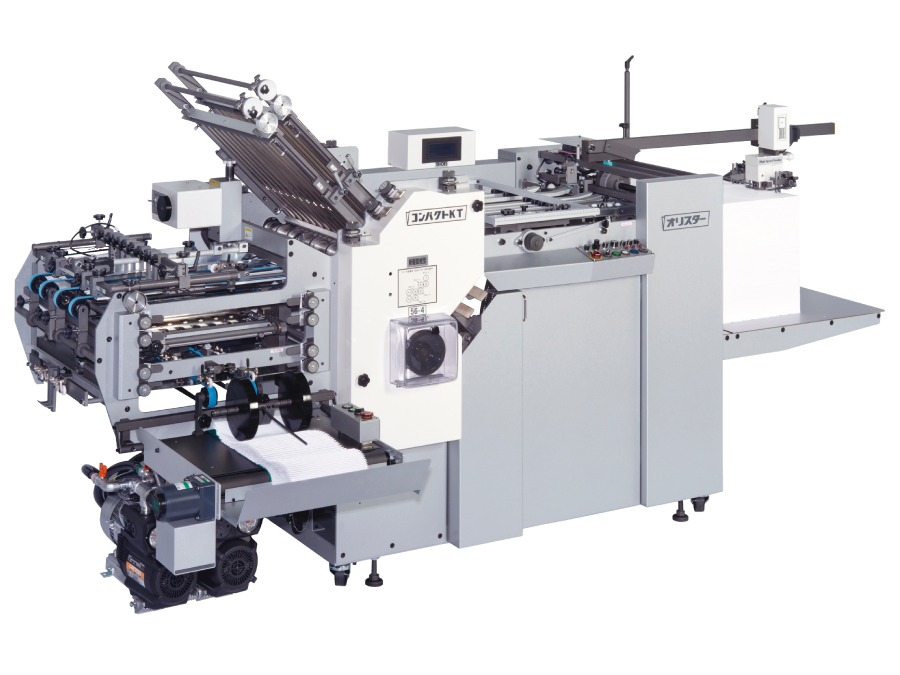

SPT56s-4(6)KTT

Cross folder with 2 side pockets

Double pocket under 8 page knife.
Two pockets under the knife for directional parallel folding.
Low profile for easy access.
MAX560x850mm format loading & A4 closed gate fold, possible by standard extended feed board (gate fold plate is optional).

Max. sheet size(W×L)560×850mm
Min. sheet size(W×L)120×135mm…parallel
150mm…knife
Min. parallel fold length65mm

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
8 page
Cross folded letter fold
Cross letter folded folio
Cross double paralleled folio
Letter folded letter
Double parallel+double parallel

SPT56s-4(6)/4(6)

SPT56s-4(6)/4(6)

All buckle cross folder

Versatility from zigzag to cross closed gate fold.
9 panel concertina fold in tandem use.
Low profile for easy access.

Max. sheet size(W×L)560×850mm
Min. sheet size(W×L)120×135mm…parallel
120mm…cross(buckle)
Min. parallel fold length65mm

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
8 page
Cross folded letter fold
Cross letter folded folio
Cross double paralleled folio
Letter folded letter
Double parallel+double parallel

SPT56s-4(6)/4(6)K

SPT56s-4(6)/4(6)K

Most versatile triple right angle folder for 16 page & various catalogue folds.

Versatility from zigzag to cross closed gate fold.
9 panel concertina fold in tandem use.
Low profile for easy access. 16page folder.

Max. sheet size(W×L)560×850mm
Min. sheet size(W×L)120×135mm…parallel
150mm…knife
Min. parallel fold length65mm

Principal Folding Capabilities

Folio
Letter fold
Z fold
Double parallel
Open gate
Roll fold
W fold
Zigzag 4
8 page
Cross folded letter fold
Cross letter folded folio
Cross double paralleled folio
Letter folded letter
Double parallel+double parallel
16 page

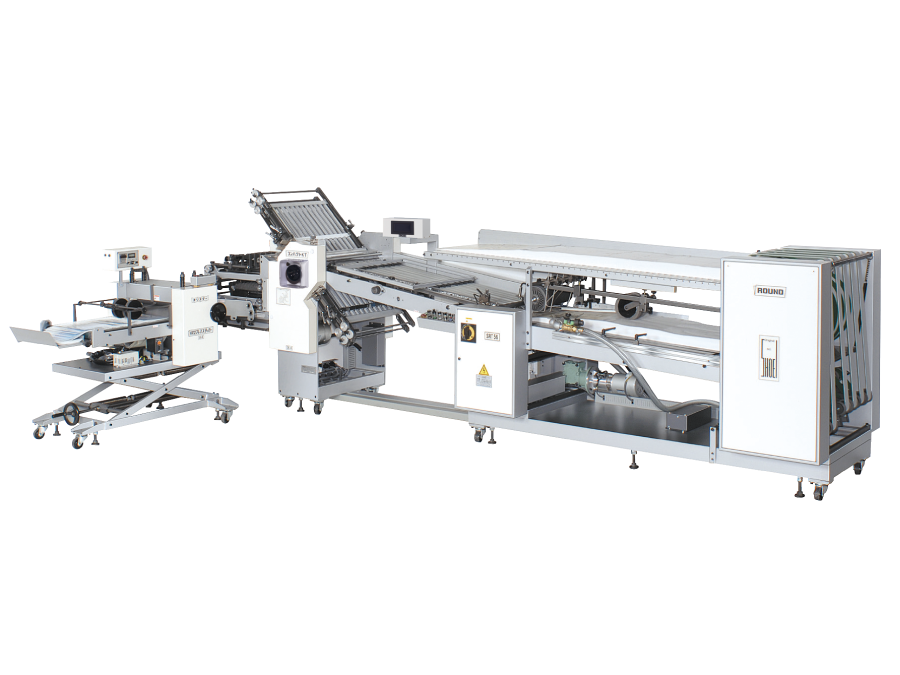

with round feeder
(SRT56s-4KTT with FPSA4)

with round feeder
(SRT56s-4KTT with FPSA4)

Combined with SHOEI’s efficiency-boosting round feeder

Suitable for smooth feeding of folds done on web,glue triplicate or guadrup licate document,stock with window,curly sheets with full ink coverage and poraus stock.
Sheet advance and suction timing are accurately controlled by photcell and rear sheet sparator is a "must" item for full width long run job.
Two opposing side pocketfor clirectional parallel fold.
