PRODUCT

MINI MACH SERIES

Excellent cost performance, simple, and reasonable

Full-function 4-buckle folder for small folds, direct mail, and multi-panel folds (6-buckle model also available)
30 φ roller, gear drive

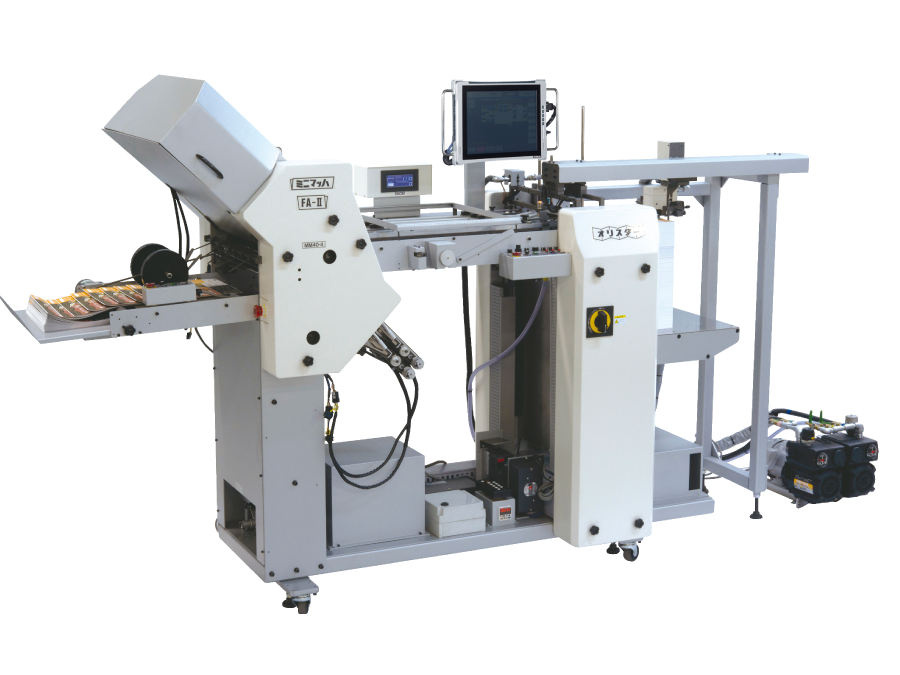

Mini mach FA-Ⅱ

Mini mach FA-Ⅱ

MM40-4(or 6)
MM44-4(or 6)

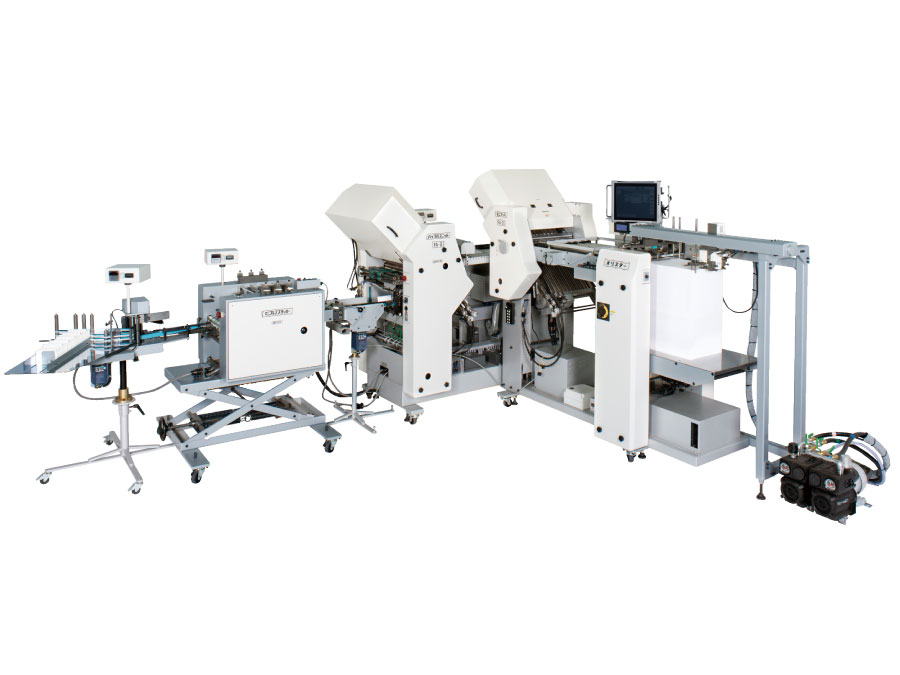

MM40-4(FA-Ⅱ) + MTB40-5K(FA-Ⅱ)

MM40-4(FA-Ⅱ) + MTB40-5K(FA-Ⅱ)

option:
+ Half turn conveyor unit + Miniature Press Stacker B4
+ Half turn conveyor unit HV
+ Small sheet vertical delivery unit with kick counter

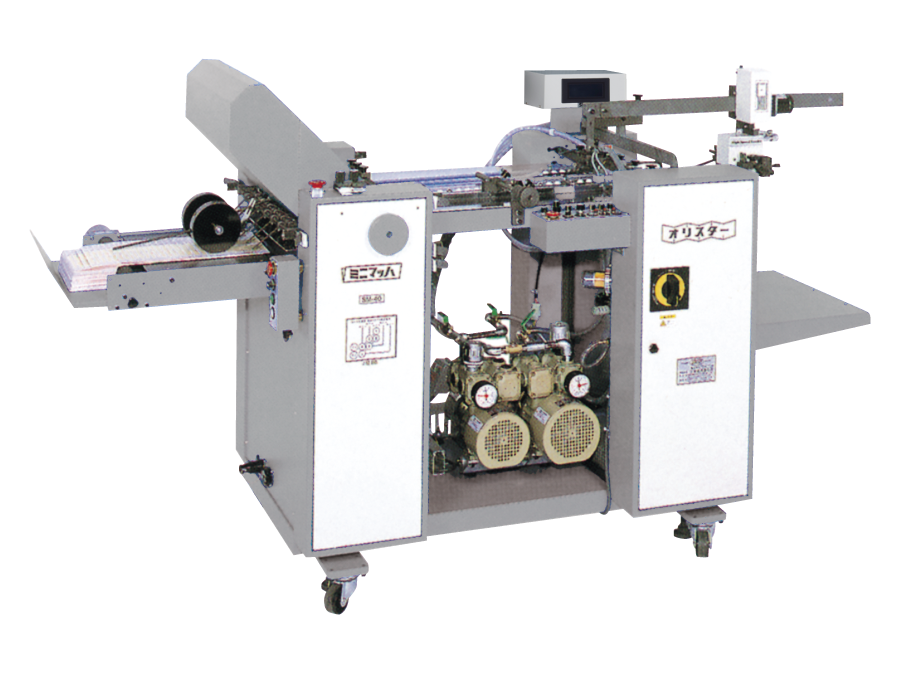

Mini mach

Mini mach

MM40-4
MM44-4

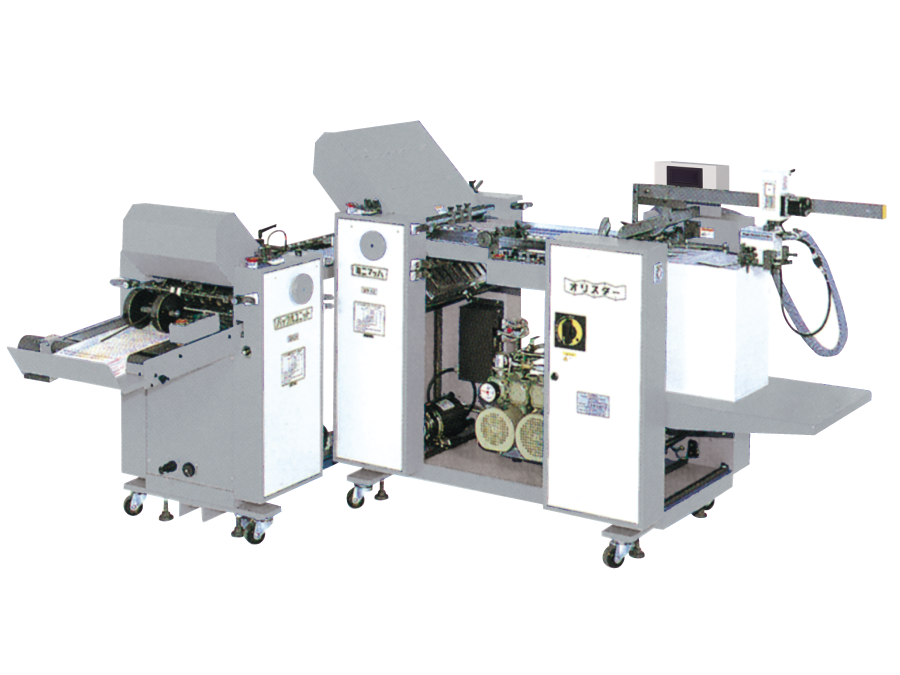

Mini mach with 2nd station

Mini mach with 2nd station

MM40-4 + 2MM26-4

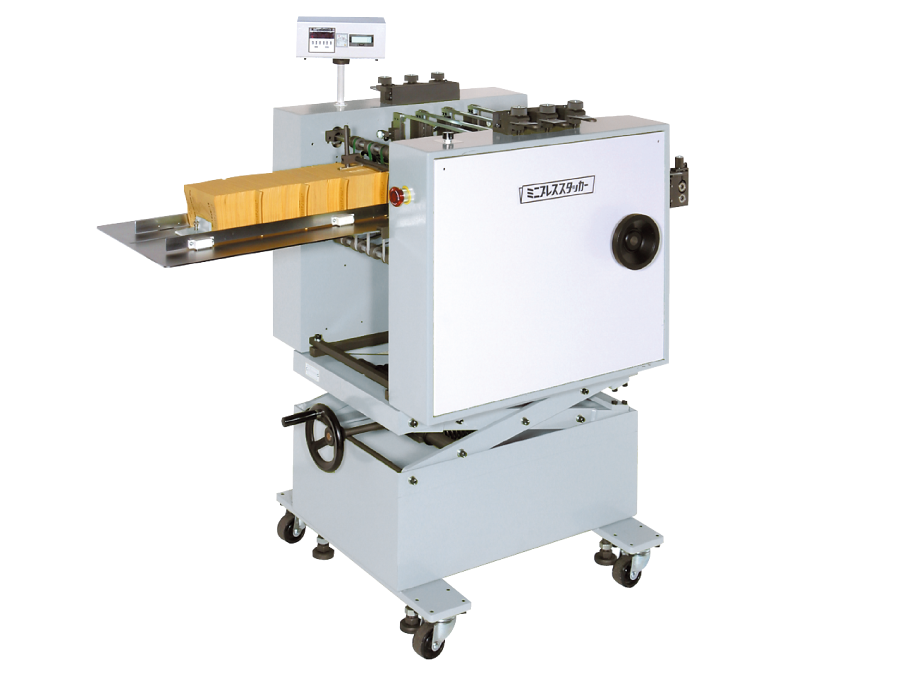

Miniature press stacker

Min.height 45mm is pressed, stacked and counted by kicker.
Infeed conveyor and press roller sections use dual tape method which positively transport folds with no jam or stop.
To be rolled-up to any SHOEI SM (mini/phamaceutical) series.

Specification

Unit size (LxW)1290×665mm
Power (200V/3ph)0.75kw
Weight (Approx. Kg)350
Lifterfixed

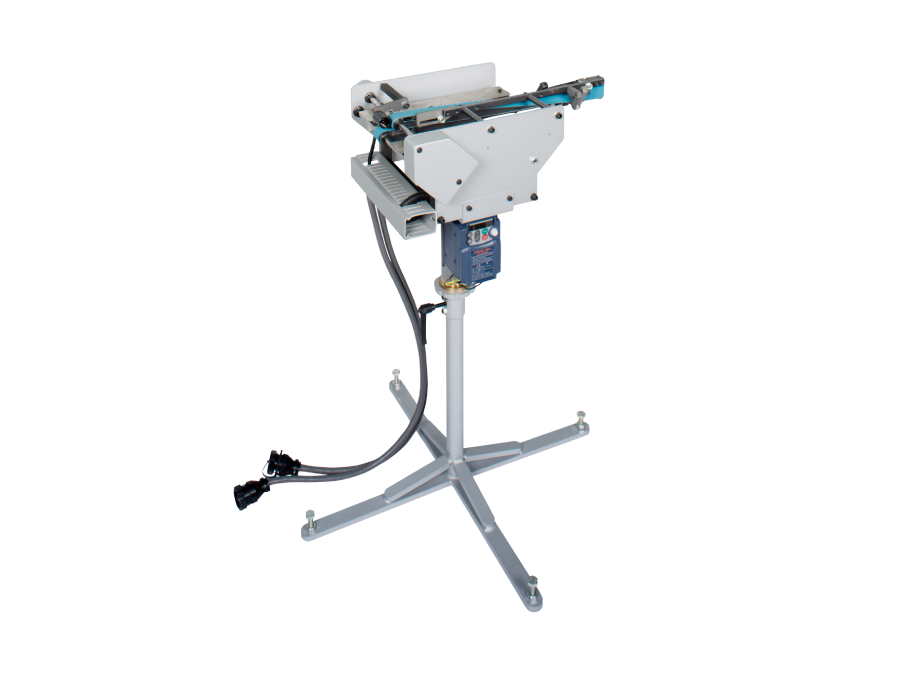

Half-turn conveyor

Half-turn conveyor

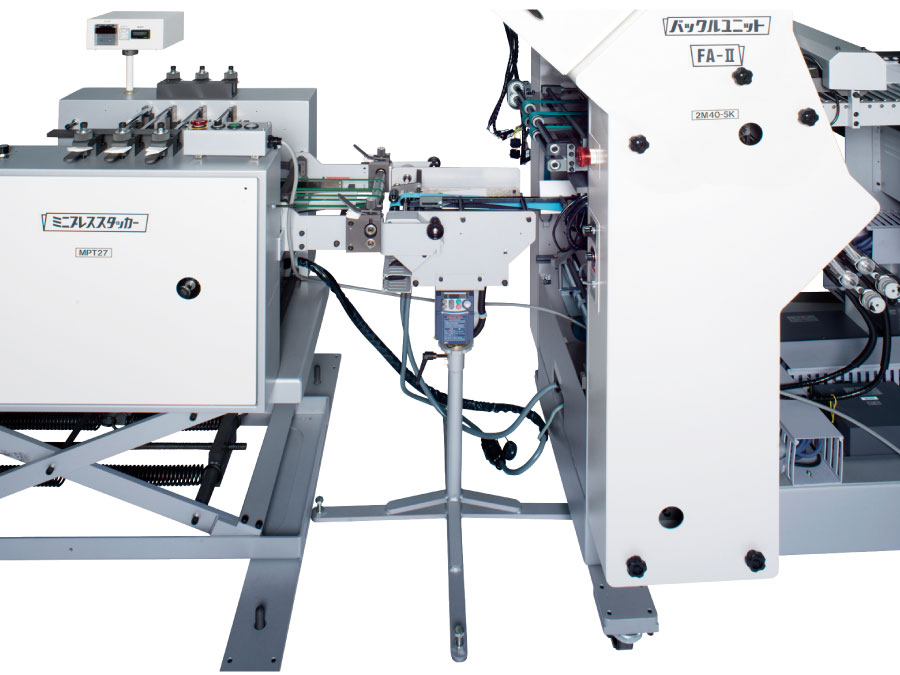

Example of connecting the buckle unit 1K to a mini-vertical press

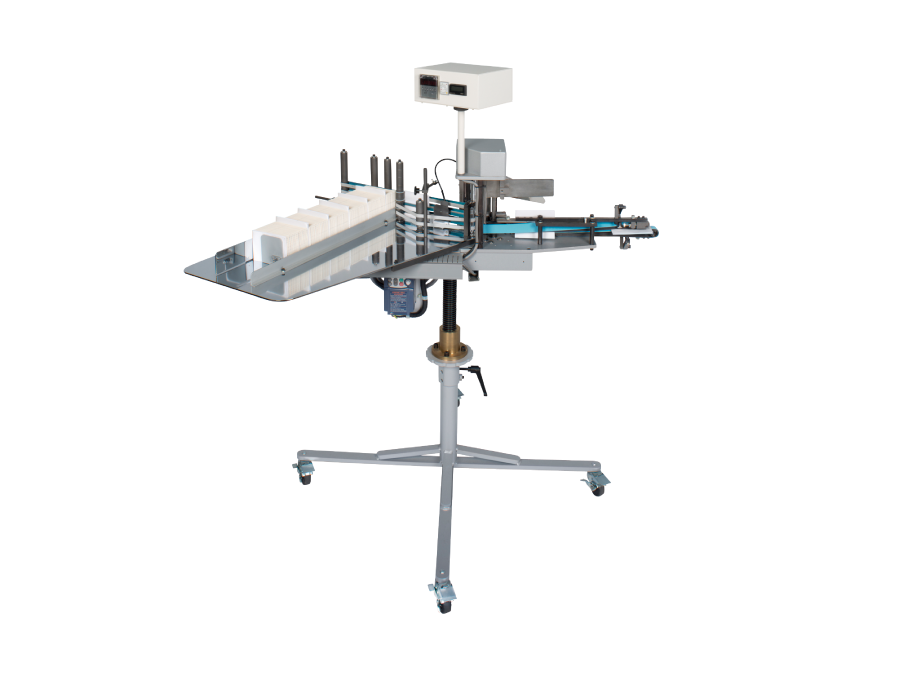

Half-turn conveyor HV

Half-turn conveyor HV

Example of connecting the buckle unit 1K to a mini-vertical press
