VERTICAL PRESS STACKER

Improving folding efficiency cannot be achieved by merely speeding up the folder.

It can be attained only when wasteful hand jogging is eliminated. You cannot imagine future folding work without the Press Stacker which promises to substantially improve efficiency. The machine has demonstrated 30% increased efficiency for average folding and two to three times for multiple or cardboard folding.

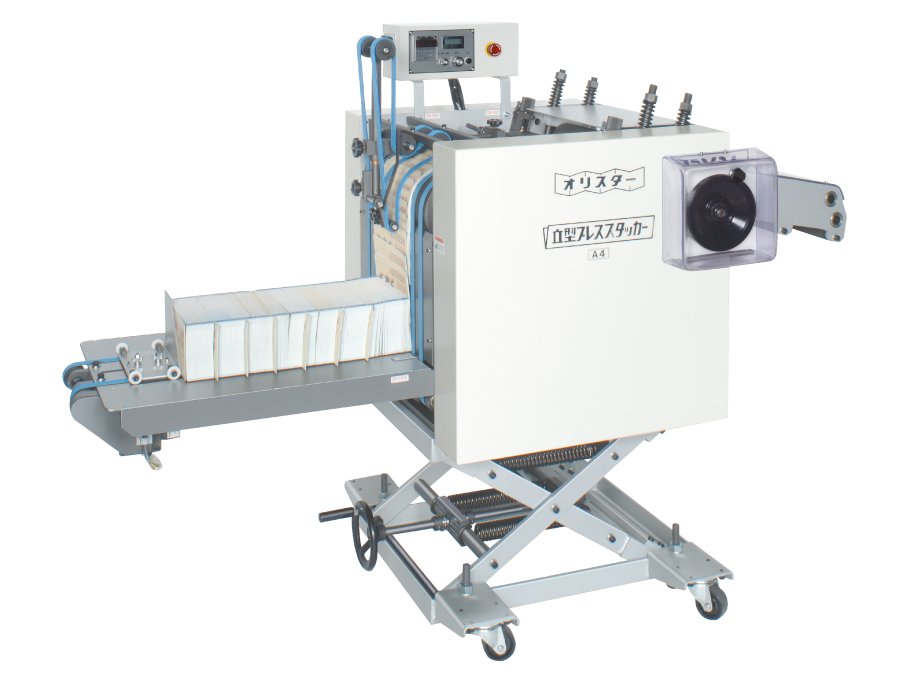

Vertical Press Stacker

Vertical Press Stacker

A4~A2(max 240mm/width for after head and foot)

During the operation of the Vertical Press Stacker, you don't have to suspend operation even when you have samething else to do. When the support plate reaches the terminal, the infeed stops automatically and starts again when the stack is removed.
A kicker is mounted as a standard component, so the batch counting is available without interrupting the infeed.
Max.stack height : 240mm
Suitable to relatively well-bodied signatures and rather thick folds.

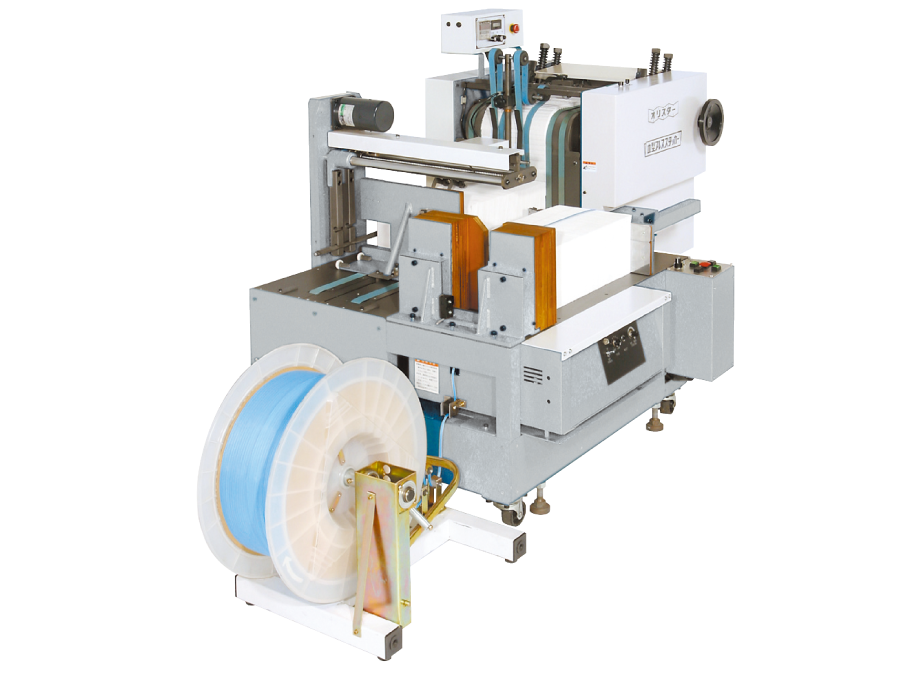

VPSMA4350~400 16-page signatures can be automati-cally pressed & bundled in one log by heat-seal tape.

※option:PP bundler(heat-seal)

Specification

Unit size (LxW)1780×800mm(A4)
Power (200V/3ph)0.4kw
Weight (Approx. Kg)300
Liftermanual

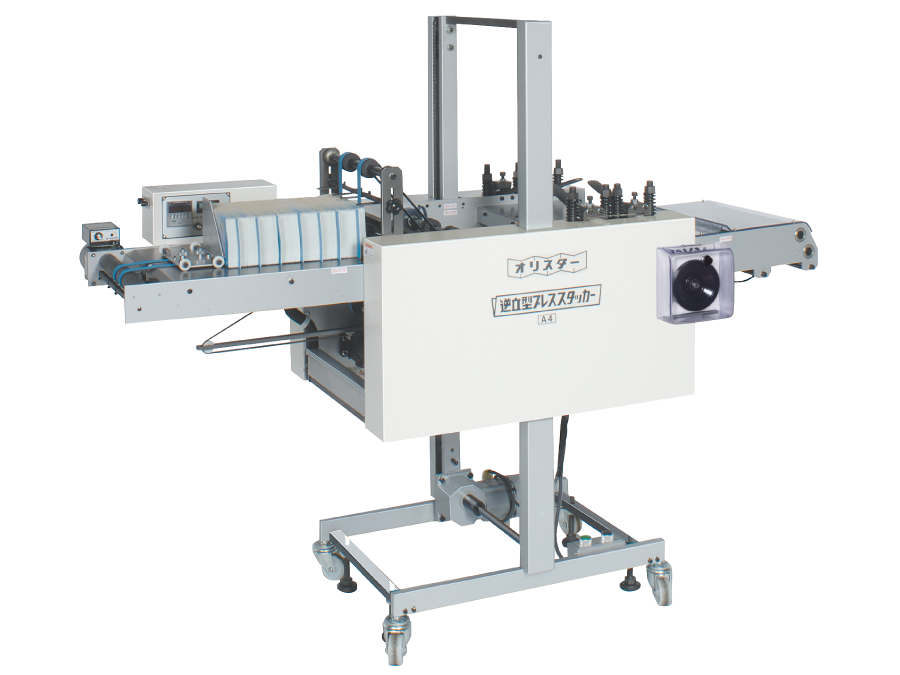

Reversal Double Press Stacker

Reversal Double Press Stacker

A4~A2

Dual press roller gives primary light pressure and secondary real tight pressure to folds. No creases produced or no additional space required.
Folds reversed & stacked for easy check over spine mark and proper folding.
Easily accessible to any SHOEI with electric motor-assisted lifter.
Max.stack height : 150mm

Specification

Unit size (LxW)1760×675mm(A4)
Power (200V/3ph)0.4kw
Weight (Approx. Kg)300
Lifterelectric

Miniature press stacker

Min.height 45mm is pressed, stacked and counted by kicker.
Infeed conveyor and press roller sections use dual tape method which positively transport folds with no jam or stop.
To be rolled-up to any SHOEI SM (mini/phamaceutical) series.

Specification

Unit size (LxW)1290×665mm
Power (200V/3ph)0.75kw
Weight (Approx. Kg)350
Lifterfixed

SHOEI ORIGINAL BUNDLERS

Horizonal PP bundler

SHOEI ORIGINAL BUNDLERS

Easy operation
※The depicted is in use of both side table and pressure. No trouble in the following process is secured due to its strong pressure and PP strapper.

Vertical PP bundler

Motorized bundler
