FLAT PRESS STACKER

Improving folding efficiency cannot be achieved by merely speeding up the folder.

It can be attained only when wasteful hand jogging is eliminated. You cannot imagine future folding work without the Press Stacker which promises to substantially improve efficiency. The machine has demonstrated 30% increased efficiency for average folding and two to three times for multiple or cardboard folding.

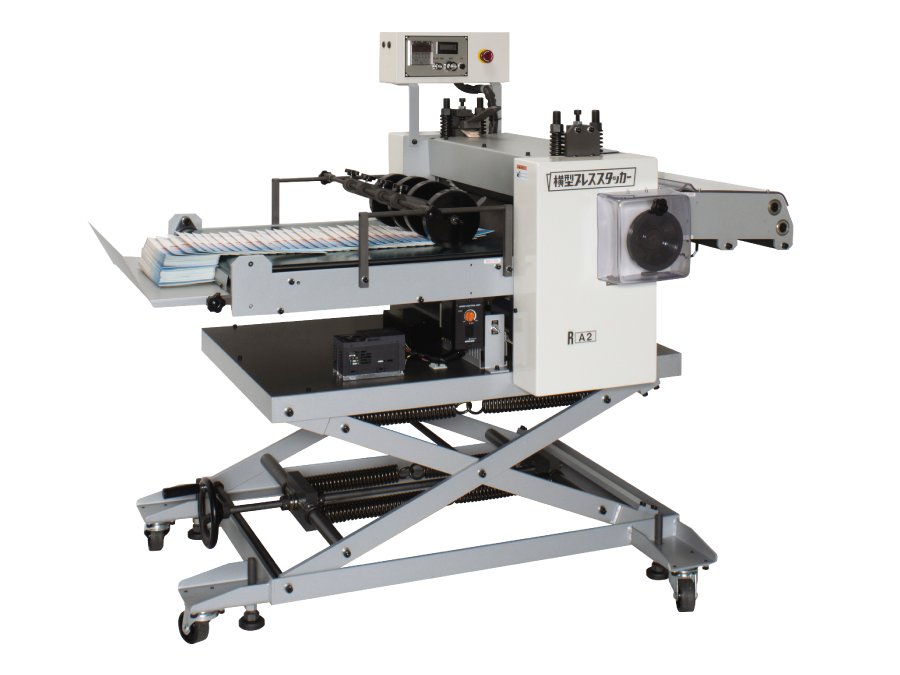

Flat Press Stacker

A4〜A1

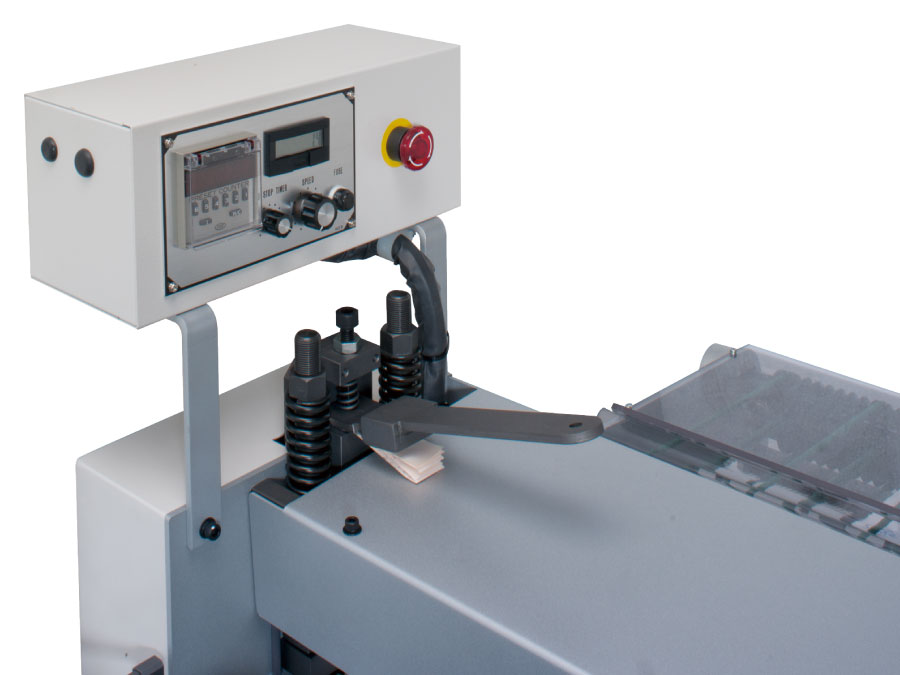

Batch counting is possible by kicker without any interruption of infeed.
With clearly readable digital counter.
2 up version with dual kicker is available as optional extra.

Roller pressure adjustment

Specification

Unit size (LxW)1400×850mm(A4)
Power (200V/3ph)0.4kw
Weight (Approx. Kg)250
Liftermanual

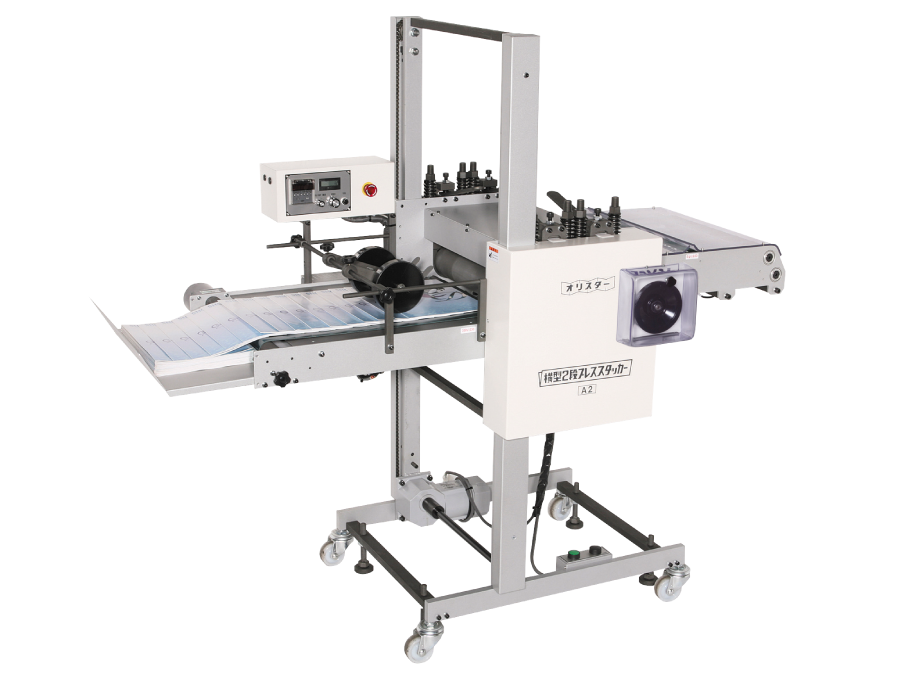

Flat Double Press Stacker

Flat Double Press Stacker

A4~A1

Dual press roller gives primary light pressure and secondary real tight pressure to folda. Nocreases produced or no additional space required.
Easily accessible to any SHOEI with electric motor-assisted lifter.
2 to 3 up version with dual or triple kicker is available as optional extra.

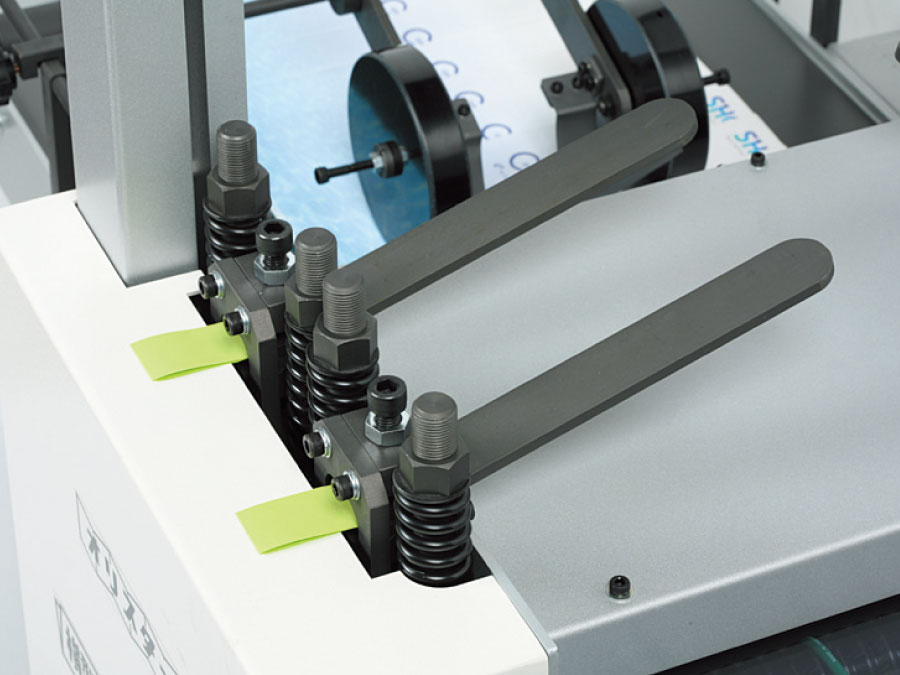

Roller pressure adjustment

Specification

Unit size (LxW)1250×685mm(A4)
Power (200V/3ph)0.4kw
Weight (Approx. Kg)300
Lifterelectric

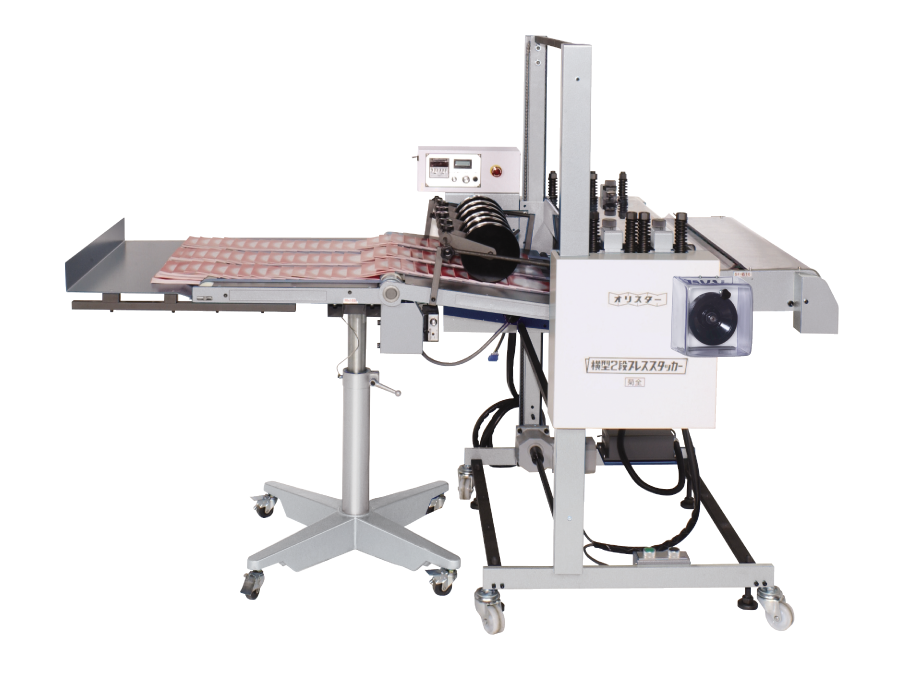

Flat Double Press Stacker (separate delivery)

Flat Double Press Stacker (separate delivery)

A4~A1

Separate in a press part and delivery part.
It can be use your delivery.(pressing section only)

Specification

Unit size (LxW)1800×1050mm(A1)
Power (200V/3ph)0.4kw
Weight (Approx. Kg)350
Lifterelectric

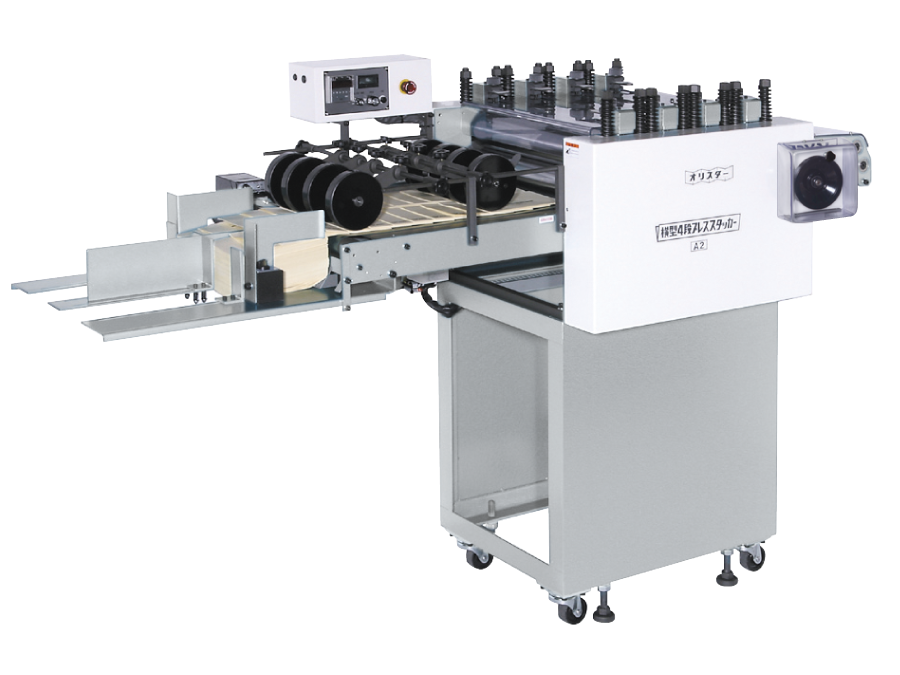

Flat Quad Press Stacker

Flat Quad Press Stacker

A4~A1

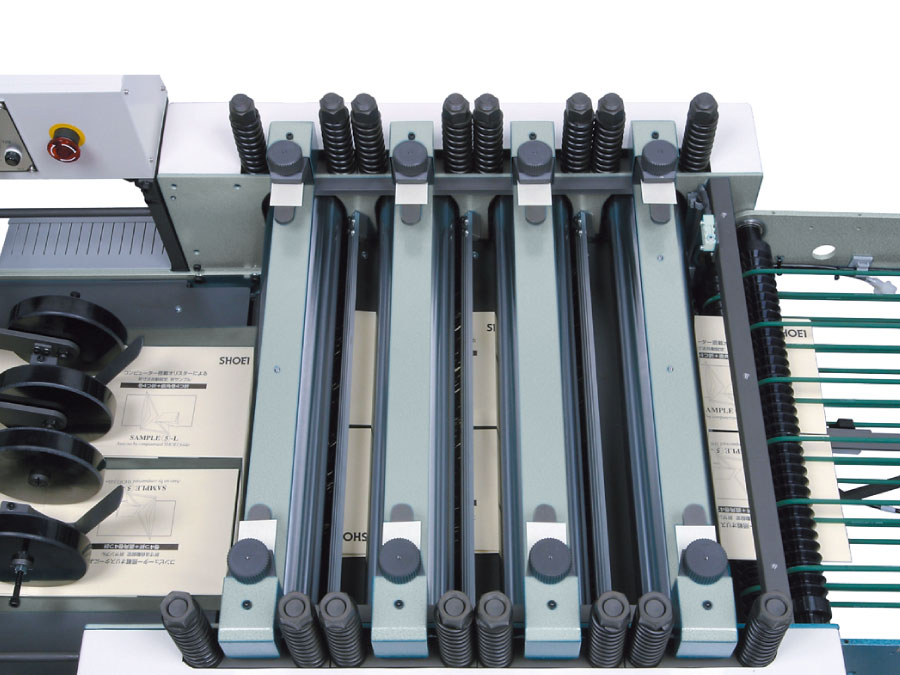

Strong pressure is obtained by 4 press rollers in one row.
Suitable for pressure-seal post cards.

Specification

Unit size (LxW)1490×885mm(A2)
Power (200V/3ph)0.4kw
Weight (Approx. Kg)400
Lifterelectric

SHOEI ORIGINAL BUNDLERS

Horizonal PP bundler

SHOEI ORIGINAL BUNDLERS

Easy operation
※The depicted is in use of both side table and pressure. No trouble in the following process is secured due to its strong pressure and PP strapper.

Vertical PP bundler

Motorized bundler
