SHEET FEEDER

Paper Sheet Feeders for Inkjet Printers, Laser Markers, Labelers, and Other Devices

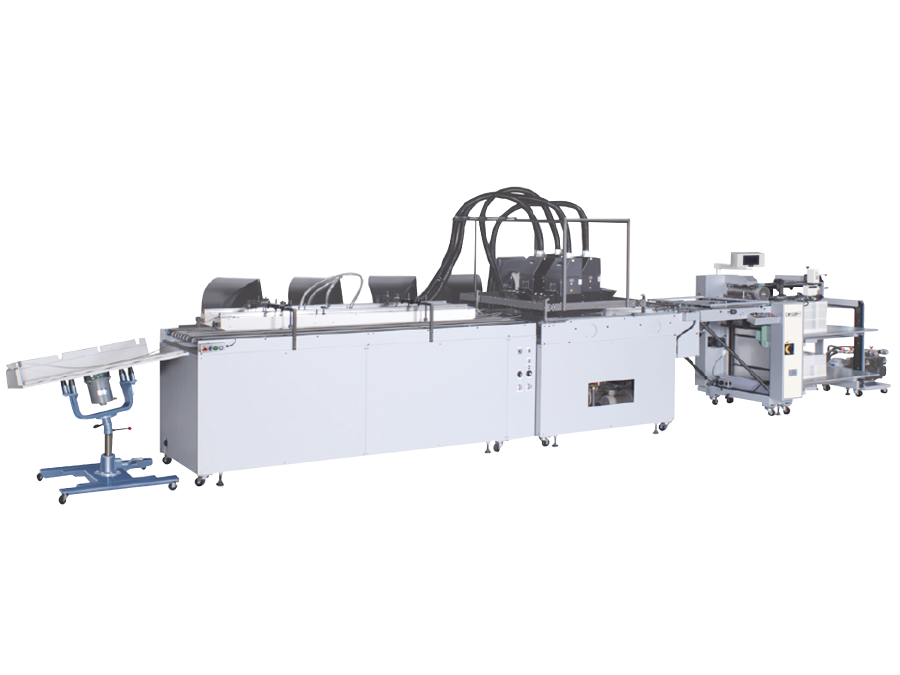

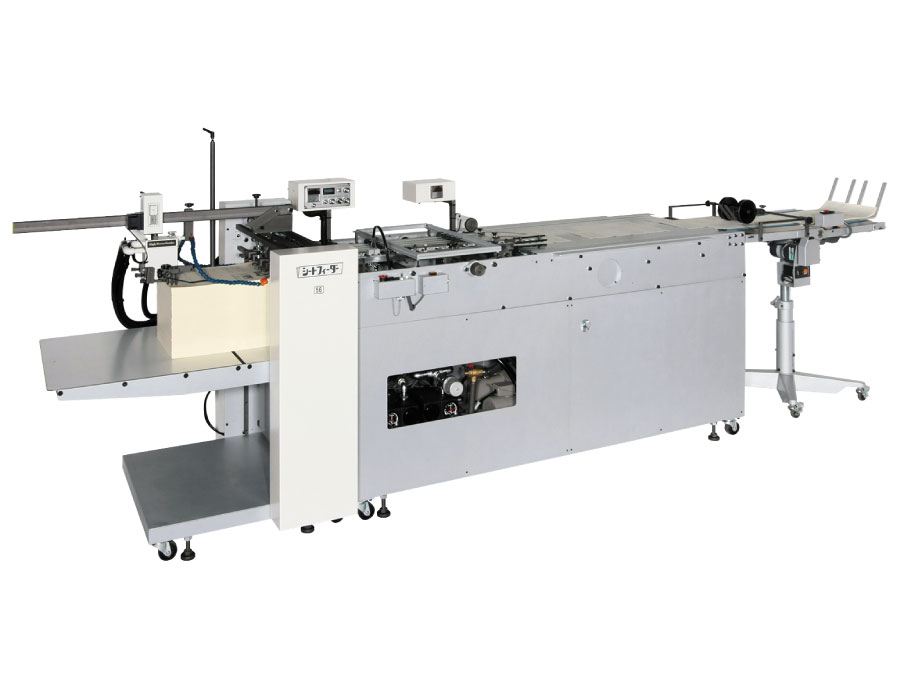

Sheet Feeder 56
+ Inkjet + Drier Conveyor + Delivery Unit

Sheet Feeder 56
+ Inkjet + Drier Conveyor + Delivery Unit

Feed by Sheet feeder machine then position fix by conveyor portion and perfect feeding by vacuum belt conveyor thence inkjet print processing done, thereafter dry process are made by the dryer conveyor.

Each manufacturer correspondence(For example picture is Kodak 6240)

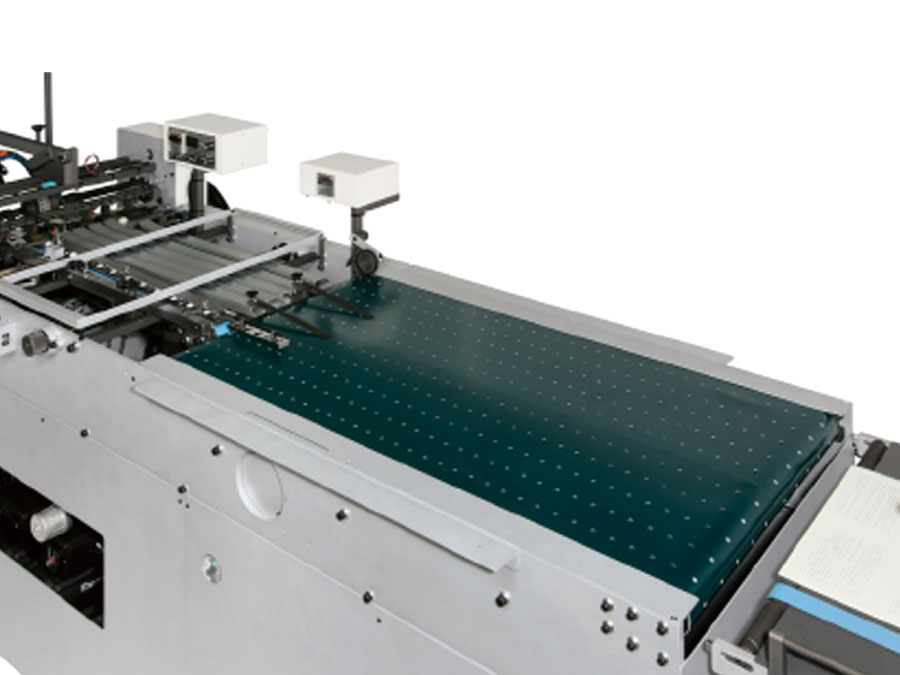

Wide vacuum belt conveyor possible use to depending on a use.

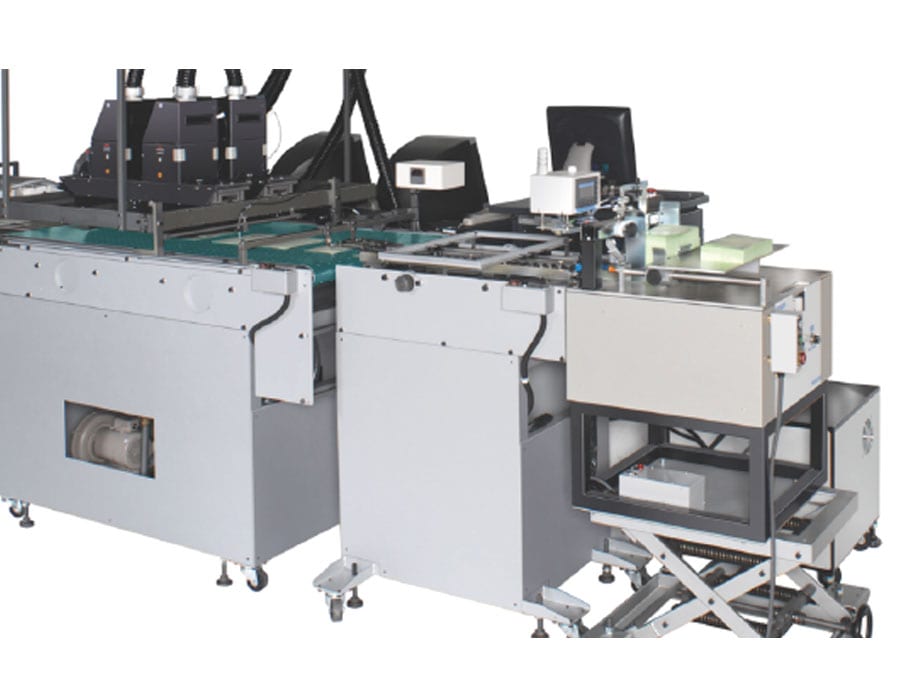

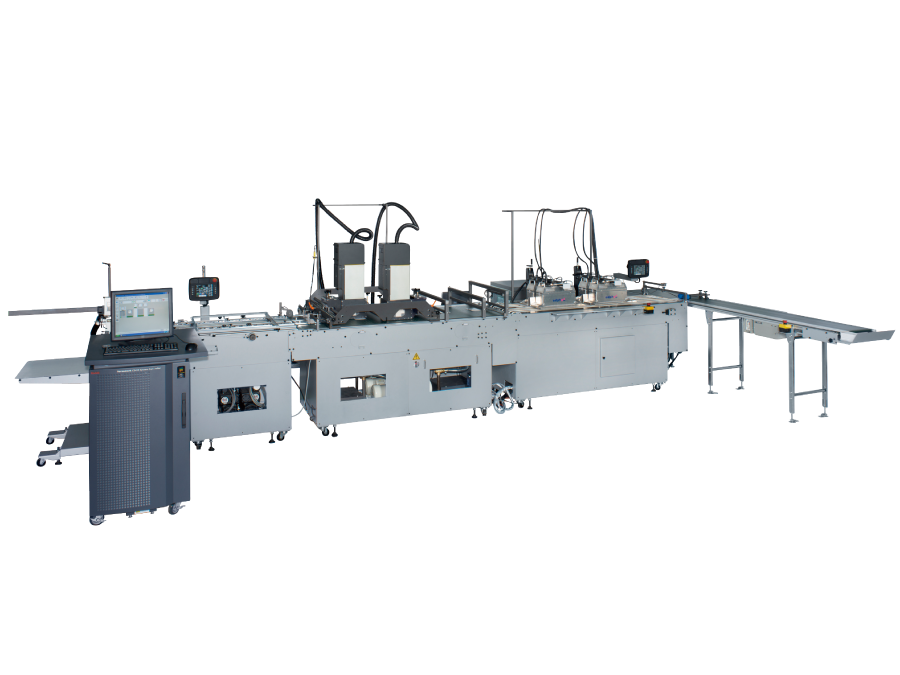

Sheet Feeder 56
with Enclosure Unit+ Inkjet Printing System + Labeling Machine

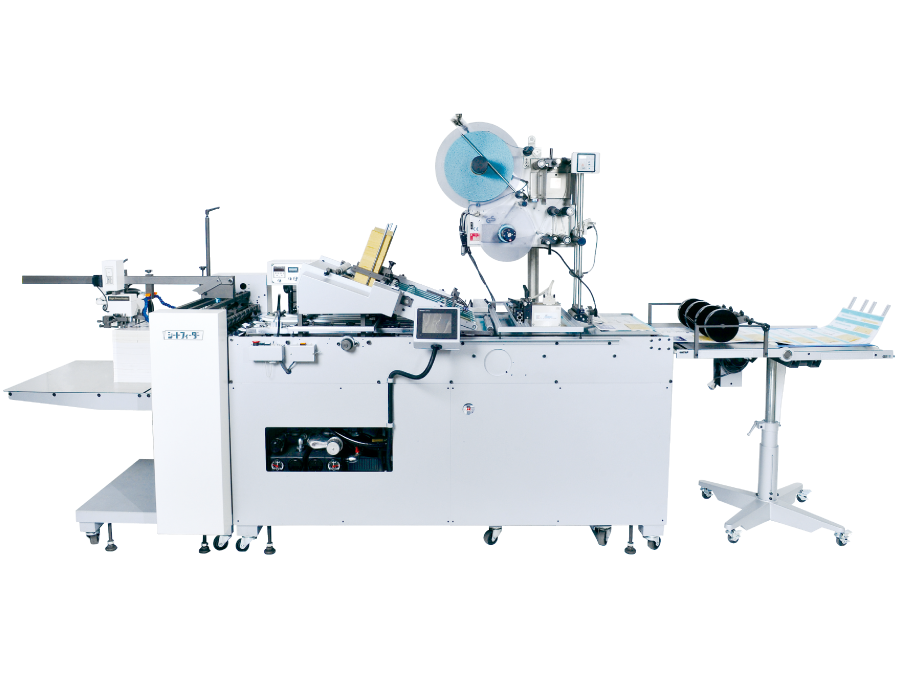

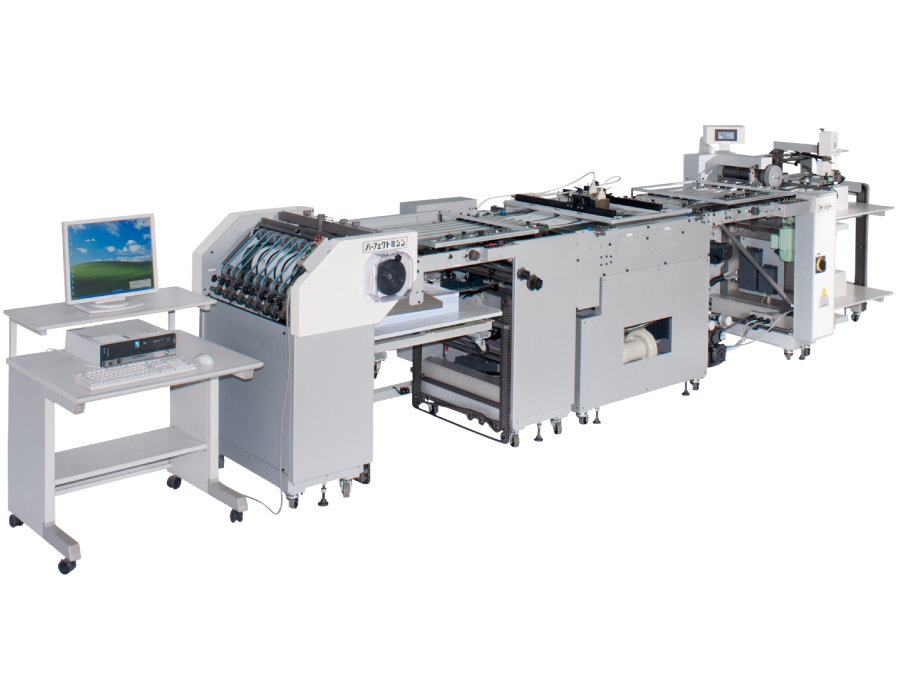

Sheet Feeder 56
with Enclosure Unit+ Inkjet Printing System + Labeling Machine

Feed by sheet feeder, position fix on conveyor portion and made perfect convey on the vacuum belt conveyor portion thence sheet tipping for card, folded sheet, name card goods sample by inserter unit, thence pre-adhesive, inkjet printing, labeling quality inspection by CCD camera, data writing in IC tug and attaching every other processing equipment thereby realizing whole processing sheet feeding integrated machine.

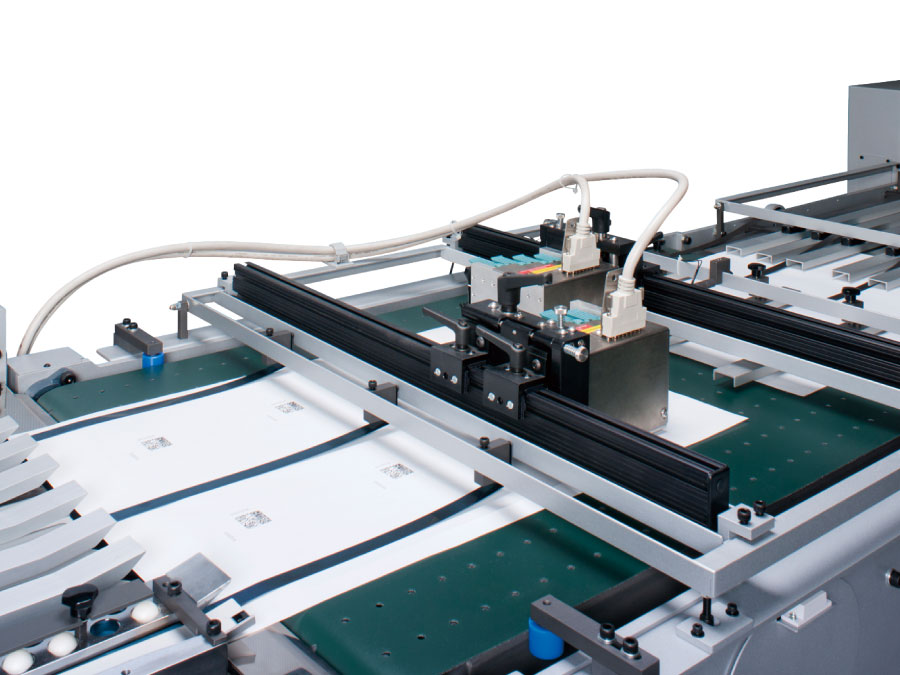

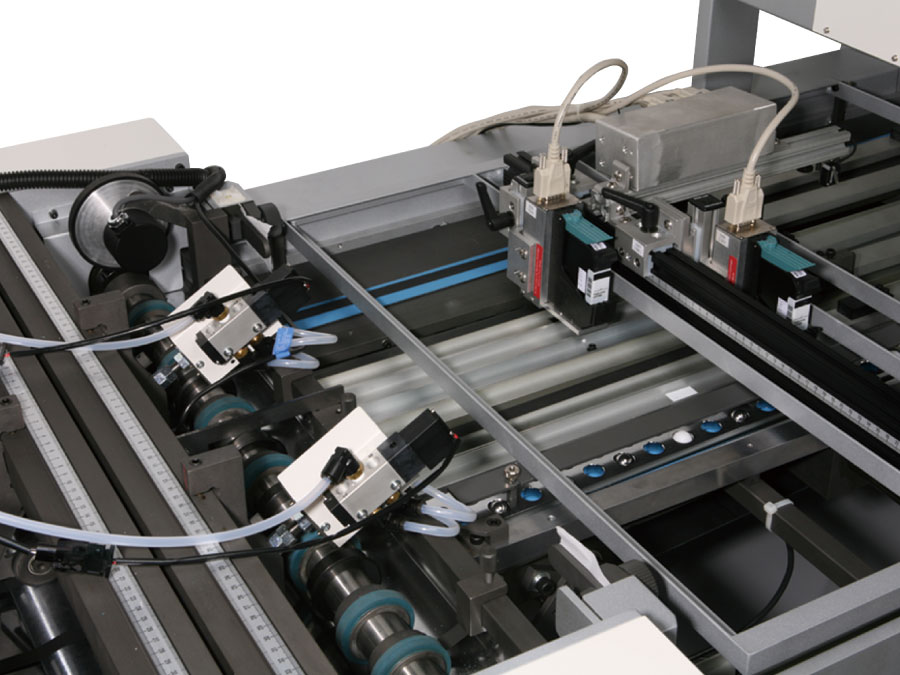

Inkjet Printer

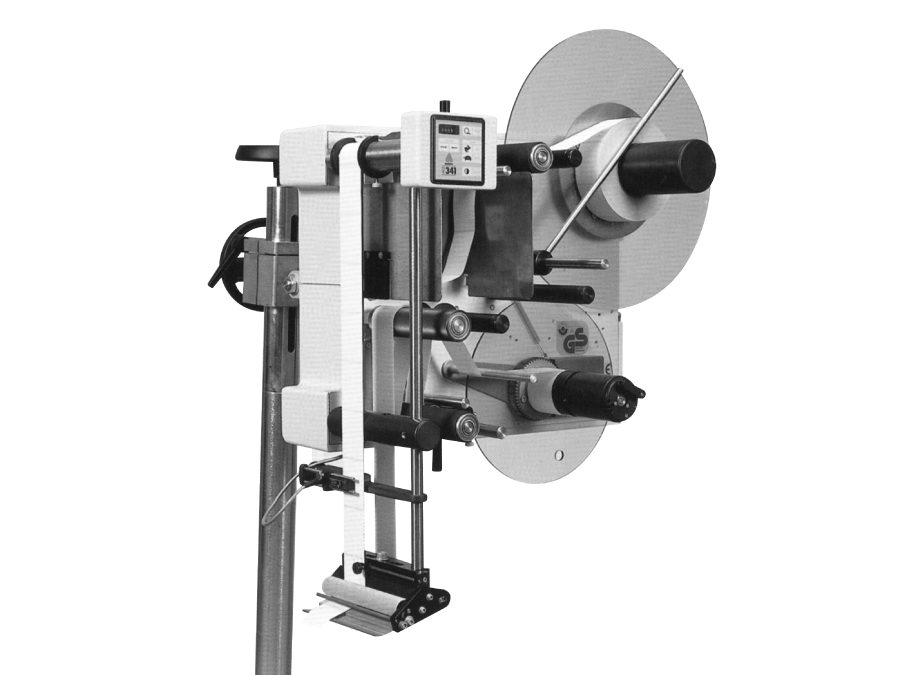

Labeling unit

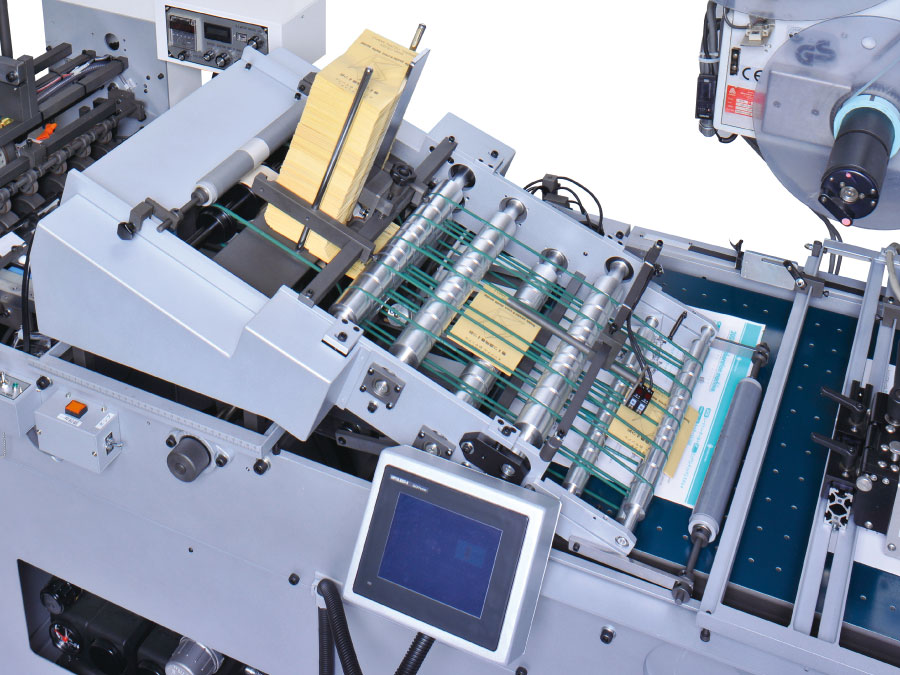

Inserter

Various units possible attach A1/ B1 pre-pile, too

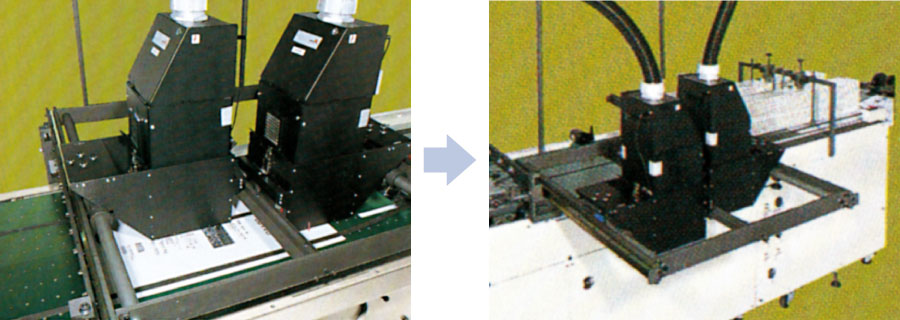

※Option kodak 6240

Various units possible attach A1/ B1 pre-pile, too

82 cm wide pre-pile attached

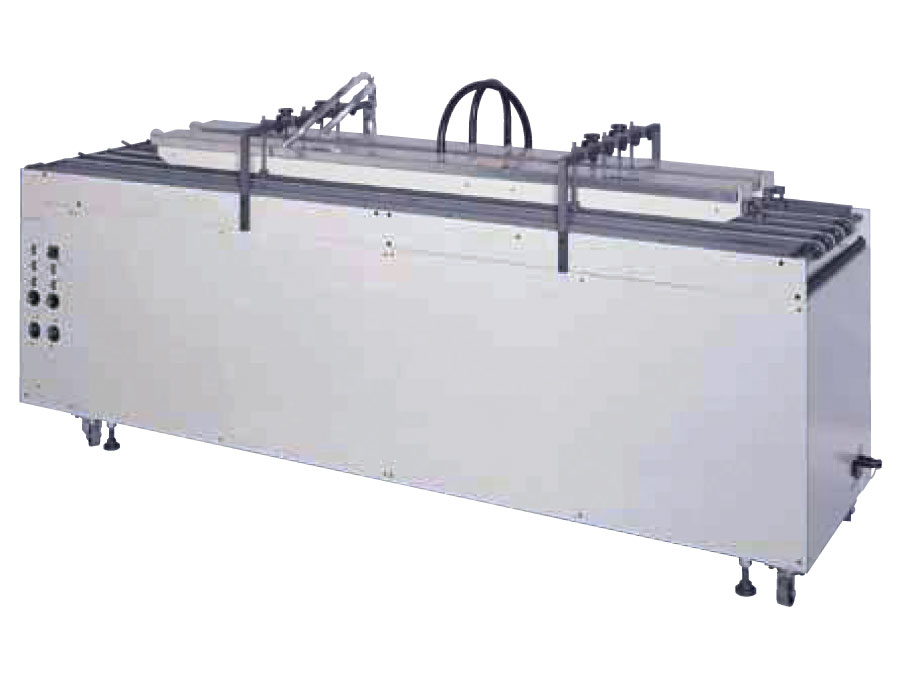

Far infrared rays for aqueous inkjet printer (Long type)

Short conveyor with Shuttle Feeder

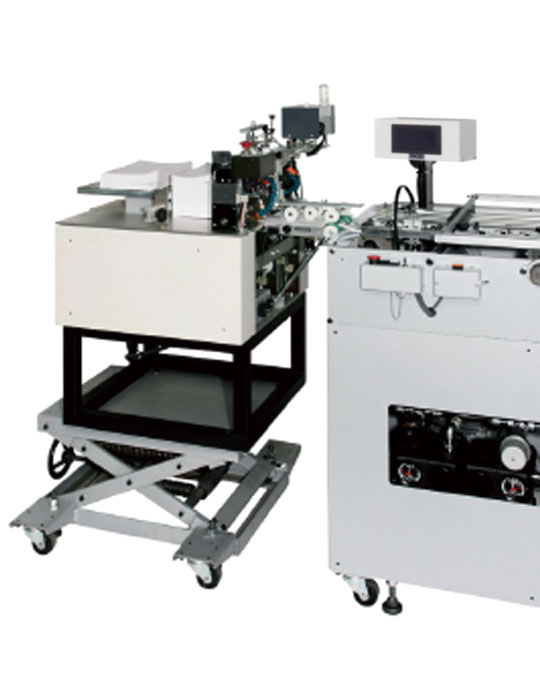

with Shuttle Feeder

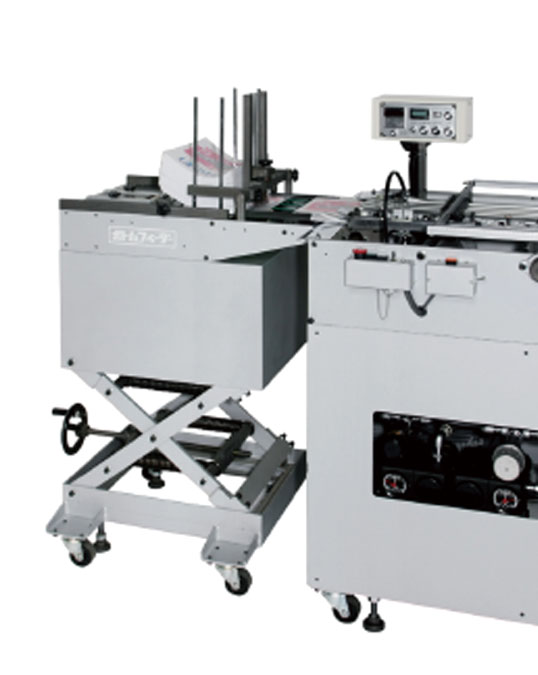

with Bottom Feeder

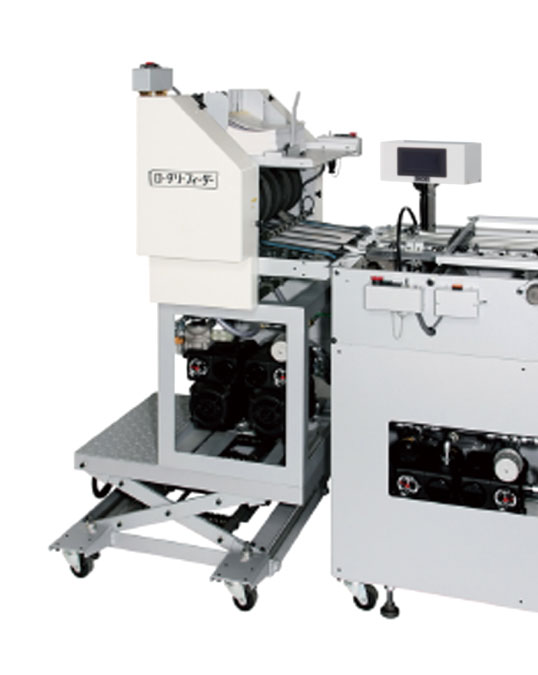

with Rotary Feeder

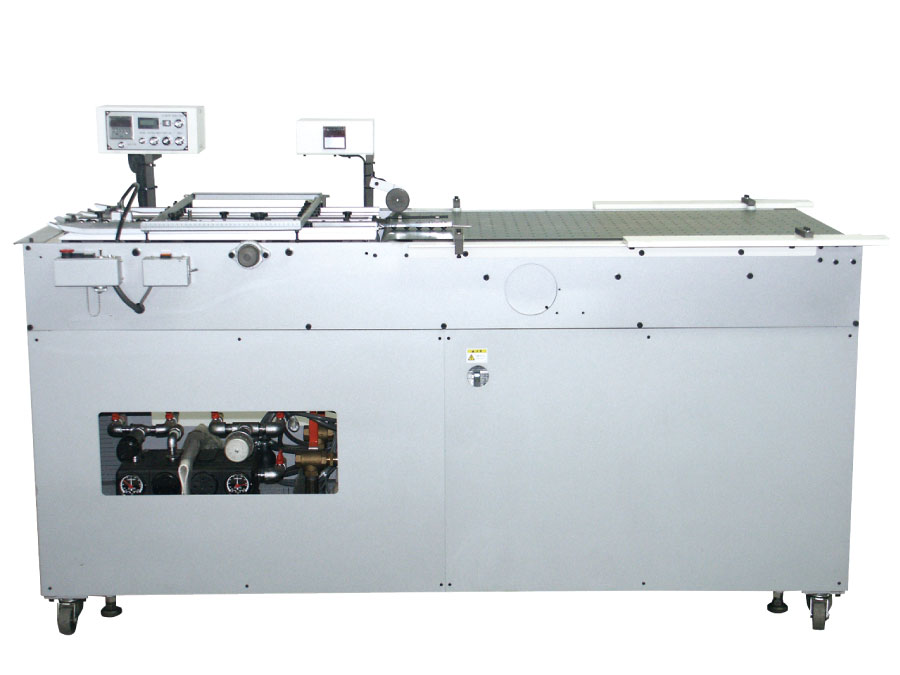

Sheet Feeder 56
+ Wide vacuum belt with positioning conveyor

Sheet Feeder 56
+ Wide vacuum belt with positioning conveyor

Pile feeder and wide vacuum belt with positioning conveyor are removable. Connectable to wide variety of feeders.

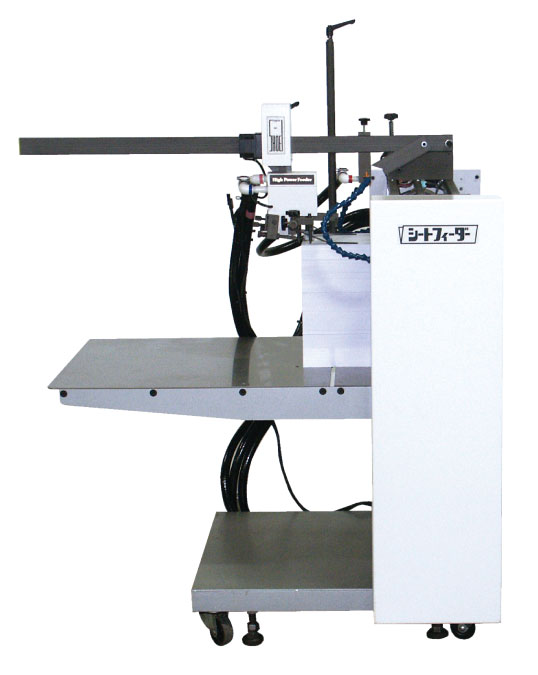

Pile feeder

Wide vacuum belt with positioning conveyor

Perforator 65 Inkjet version
(Air Vacum conveyor 2,000mm)

Perforator 65 Inkjet version
(Air Vacum conveyor 2,000mm)

Presenting the inkjet printer air vacuum conveyer for your standard multi-purpose perforating machine. The paper is completely set before being fed, allowing for exceptional printing precision. Aside from inkjet printing, it can be attached to all other sorts of equipment for label affixing, print inspection by CCD cameras, IC tag reading and writing, and other manufacturing processes.

Inkjet installation example Pictured equipped with the Uchida Techno EZ Inkjet Printer.
