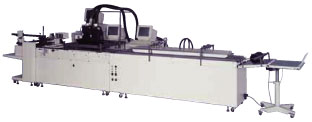

| Sheet Feeder 56 + Inkjet + Drier Conveyor + Delivery Unit |
 |
Feed by Sheet feeder machine then position fix by conveyor portion and perfect feeding by vacuum belt conveyor thence inkjet print processing done, thereafter dry process are made by the dryer conveyor. |
|
|
|
|
Each manufacturer correspondence

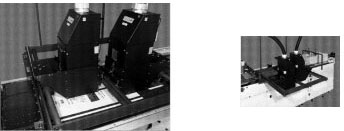

(For example picture is Kodak Versamark 6300) |
|

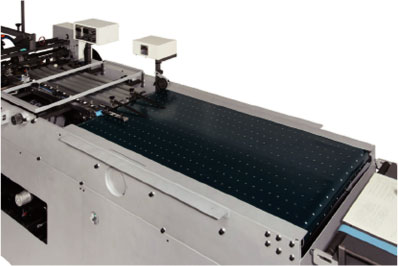

Wide vacuum belt conveyor possible use to depending on a use. |
|
Far infrared rays for aqueous inkjet printer (Long type) |
|

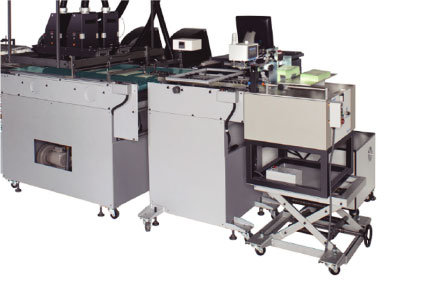

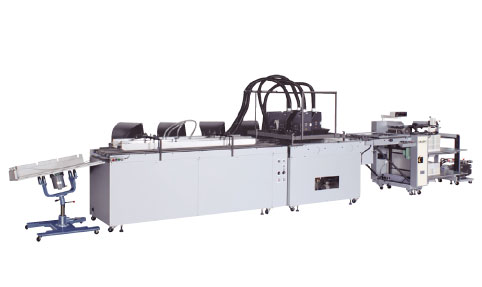

Sheet Feeder 56 with Enclosure Unit
+ Inkjet Printing System + Labeling Machine
|
 |
Feed by sheet feeder, position fix on conveyor portion and made perfect convey on the vacuum belt conveyor portion thence sheet tipping for card, folded sheet, name card goods sample by inserter unit, thence pre-adhesive, inkjet printing, labeling quality inspection by CCD camera, data writing in IC tug and attaching every other processing equipment thereby realizing whole processing sheet feeding integrated machine. |
|
|
Inkjet Printer |
Inserter |

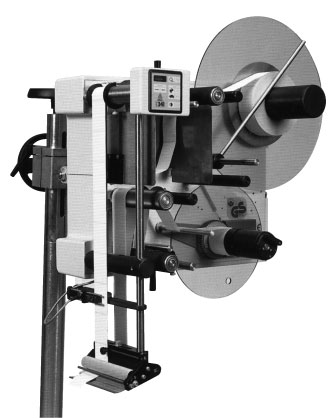

Labeling machine |
|
| Various units possible attach A1/ B1 pre-pile, too |
82 cm wide pre-pile attached |
|
Short conveyor with Shuttle Feeder |

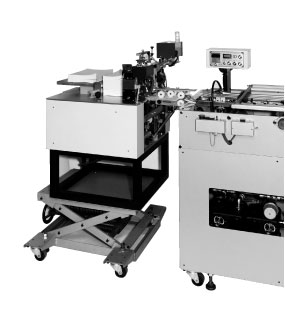

with Shuttle Feeder |
with Bottom Feeder |

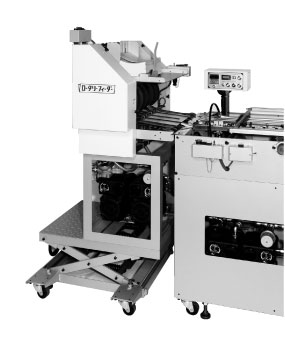

with Rotary Feeder |
|
| |
